4040, Slot Width 8mm Aluminum Frames

4040, Slot Width 8mm Aluminum Frames
  • Volume Discount
Check FAQ of this product (2 items)

MISUMI

MiSUMi Economy

MISUMI

Part Number

Configured Part Number is shown.


Product Overview
Economy series new products, with different cross-sectional shapes, can only be matched with Economy series special accessories starting with L.
Aluminum alloy profiles with a slot width of 8mm, a side length of 40mm, and one row of slot.







[Intended Use]
Slot width 8mm-40 Series aluminum profile is suitable for frame combination of large hoods, racks and shelves.



Specification Table



*6000mm is  availalble for sales in MISUMI Vietnam only .Please refter to this product page.
Maximum selectable length can be checked on configure bar on the left.
As it is a low cost and Economy series product, there may be small scars and defects on the surface. If you have higher requirements for the surface and end face, please select well.

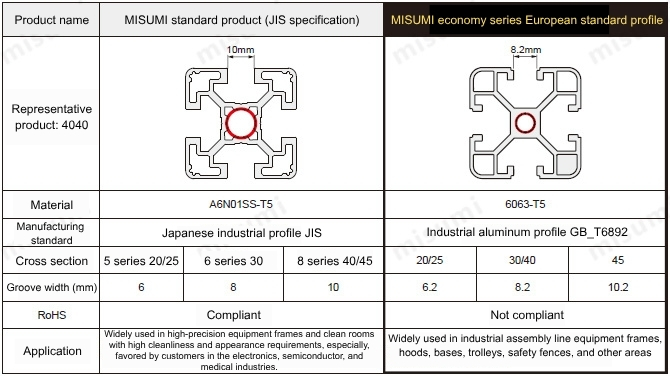

Example of Use
European standard Economic Type Aluminum alloy profiles with a groove width of 8mm, a side length of 40mm, and one row of groove Example of UseExample of Use for European Standard Profile

Precautions
E-Seriesaluminum profiles and existing Japanese standard aluminum profile accessories from MISUMI are not compatible. It is recommended to use European standard economy series accessories starting with L:
Types of accessoriesPart Number 1Part Number 2Part Number 3Part Number 4Part Number 5
ConnectorLBJ8-40LBSB8-4040LBIE8-40-8LBC8-90
NutLNTN8-40-6LNHRN8-40-8 *LNTRNM8-40-6LNSN8-40-8LTTB8-8-20
End capLCEC8-4040-B- --
GasketsLMCSB8 (Black)LMCSG8 (Grey)LMUSB8 (U-shaped black) -
* Apply for LCF8-4040 only
Other Aluminum Accesories, please contact with Misumi to check.

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
KLCFB8-4040-4000
KLCFL8-4040-4000
KLCFM8-4040-4000
KLCFS8-4040-4000
KLCFSL8-4040-4000
KLCFW8-4040-4000
LCFB8-4040-[50-2500/0.5]
LCFLY8-4040-[50-4000/0.5]
LCFM8-4040-[50-2500/0.5]
LCFNL8-4040-[50-4000/1]
LCFS8-4040-[50-2500/0.5]
LCFW8-4040-[50-2500/0.5]
LCFY8-4040-[50-4000/0.5]
Part NumberMinimum order quantityVolume DiscountDays to ShipSurface Treatment Extrusion Type L Dimension Fixed, Specified Overall Length L (Effective Length) Type Overall Length L (Effective Length) Weight
(kg/m) 		Feature
4 Piece(s)Available 10 Day(s) Black AnodizeBlackFixed4000Light Core-1.28-
1 Piece(s) 2 Day(s) Clear AnodizeLightFixed4000Light Core-1.12-
12 Piece(s)Available 10 Day(s) Clear AnodizeRound CornerFixed4000Light Core-1.27-
8 Piece(s)Available 10 Day(s) Clear AnodizeSand BlastFixed4000Light Core-1.28Sand Balst Finished
1 Piece(s) 2 Day(s) Clear AnodizeSuper LightFixed4000Light Core-0.89-
8 Piece(s)Available 10 Day(s) Clear AnodizeHeavy DutyFixed4000Standard Core-1.74-
1 Piece(s) 10 Day(s) Black AnodizeBlackSpecified-Light Core50 ～ 25001.27-
1 Piece(s) 10 Day(s) [Baked Finish (Yellow)] Baked Yellow PaintLight YellowSpecified-Light Core50 ～ 40001.12-
1 Piece(s) 10 Day(s) Clear AnodizeRound CornerSpecified-Light Core50 ～ 25001.27-
1 Piece(s) 4 Day(s) Black AnodizeLightSpecified-Standard Core50 ～ 40001.06-
1 Piece(s) 10 Day(s) Clear AnodizeSand BlastSpecified-Light Core50 ～ 25001.27Sand Balst Finished
1 Piece(s) 10 Day(s) Clear AnodizeHeavy DutySpecified-Standard Core50 ～ 25001.9-
1 Piece(s) 10 Day(s) [Baked Finish (Yellow)] Baked Yellow PaintYellowSpecified-Standard Core50 ～ 40001.55-

Loading...

  1. 1
AlterationAlteration SymbolSpecificationMachining/Corrensponding Accesories
End Tapping
(Center Hole)		LTP/RTP/TPW追加工1在铝型材端面加工螺纹孔

使用到该追加工的配件：
半圆头螺栓

45-Degree
Cutting

L□T45/R□T45追加工245度角度切割
Drilling
Wrench
Hole		LWP/RWP追加工3隐藏式连接

使用到该追加工的配件：
半圆头螺栓
Counter
boring		Z8/XA追加工4左端面指定任意位置开沉孔

使用到该追加工的配件：
半圆头螺栓

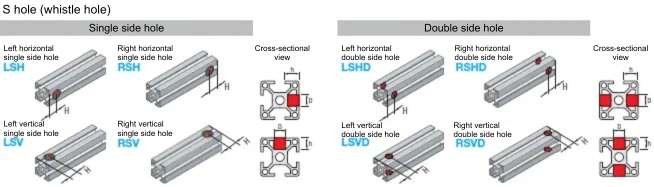

S Hole
Blind Joint
Dedicated
Holes		LSH/RSH追加工5左端面开始固定位置开S孔

使用到该追加工的配件：
口哨（内置连接）
M Hole
Blind Joint
Dedicated
Holes		LMH/RMH追加工6左端面开始固定位置开S孔

使用到该追加工的配件：
卯式连接件（内置连接）





Product Overview
European standard economy series new products, with different cross-sectional shapes, can only be matched with European standard economy series special accessories starting with L.
Aluminum alloy profiles with a groove width of 8mm, a side length of 40mm, and one row of groove.


Dimension Tolerance:



Product Feature
[Features]
Simple specifications, beautiful appearance

[Intended Use]
groove width 8mm-40 Series European standard aluminum profile is suitable for frame combination of large hoods, racks and shelves.

Specifications Overview
Specifications
  Material: 6063-T5
  Surface treatment: Clear Anodized

Example of Use
European standard Economic Type Aluminum alloy profiles with a groove width of 8mm, a side length of 40mm, and one row of groove Example of UseExample of Use for European Standard Profile

Precautions
European standard aluminum alloy profiles and existing Japanese standard aluminum profile accessories from MISUMI are not compatible. It is recommended to use European standard economy series accessories starting with L:
Types of accessoriesPart Number 1Part Number 2Part Number 3Part Number 4Part Number 5
ConnectorLBJ8-40LBSB8-4040LBIE8-40-8LBC8-90
NutLNTN8-40-6LNHRN8-40-8 *LNTRNM8-40-6LNSN8-40-8LTTB8-8-20
End capLCEC8-4040-B- --
GasketsLMCSB8 (Black)LMCSG8 (Grey)LMUSB8 (U-shaped black) -
* Apply for LCF8-4040 only
Other Aluminum Accesories, please contact with Misumi to check.

Basic Information

Standard Extrusion Size(mm) 40 Extrusion Series MISUMI Economy Series LCF 30/40/50/60 (Slot Width 8 mm) Extrusion Type Square Shape
Number of Slotted Surfaces Four-Side Slots Surface Milled Not Provided Material 6063-T5

Configure

Clear All

13 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Surface Treatment

    • Clear Anodize
    • Black Anodize
    • Baked Finish (Yellow)
      • Baked Yellow Paint

    Clear

  • Extrusion Type

    • Black
    • Heavy Duty
    • Light
    • Light Yellow
    • Round Corner
    • Sand Blast
    • Super Light
    • Yellow

    Clear

  • L Dimension Fixed, Specified

    • Fixed
    • Specified

    Clear

  • Overall Length L (Effective Length)

    • 4000

    Clear

  • Type

    • Light Core
    • Standard Core

    Clear

  • Overall Length L (Effective Length)

     [50-4000/0.5][50-4000/1]

    Clear

  • type

    • KLCFB8-4040
    • KLCFL8-4040
    • KLCFM8-4040
    • KLCFS8-4040
    • KLCFSL8-4040
    • KLCFW8-4040
    • LCFB8-4040
    • LCFLY8-4040
    • LCFM8-4040
    • LCFNL8-4040
    • LCFS8-4040
    • LCFW8-4040
    • LCFY8-4040

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • 2 Day(s) or Less
    • 4 Day(s) or Less
    • 10 Day(s) or Less

    Clear

Specify Alterations
