Cable Carriers Flap Closed

Brand :

MISUMI

Caution

Product Description

Cable Carriers With Flap Closed
Cable carriers are essential equipment used in automation machines to effectively organize and prevent the tangling and twisting of cables. They provide a wide range of sizes to choose from.
[Feature]
- Inner Height (mm.) : 10 and 15
- Inner Width (mm.) : 10, 15, 20, 30, 40 and 50
- Bending Radius (mm.) : 18, 28, 38 and 48
- Number of links (Pcs.) : can select between 10 and 65
- Pitch (mm.) : 20
- Material: PA + Glass Fiber
[Application]
It is used in automation machines to organize and prevent issues from the cable tangling and twisting.

Economy Flap Closed Cable Carrier

Cable ProtectionNoise ReductionDurable

- Securely closed flap design for enhanced cable protection

- Available in various compact sizes

- Strong PA+Glass Fiber construction

- Ideal for narrow space installations

- Effective noise reduction for quieter operation

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Product Overview

Prevents cables and conduits connected to moving parts of equipment from twisting, stretching, or tangling due to movement.

(1) One-piece structure, compact size and lightweight, suitable for low-load areas
(2) Crossbars cannot be opened, providing stronger torsion resistance (this product does not come with separators)
(3) Material: Imported PA + glass fiber

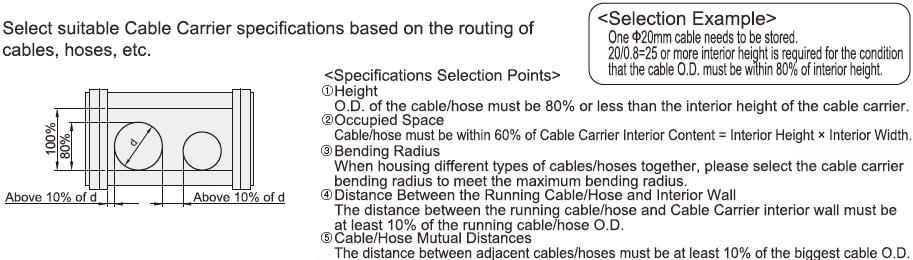

Selection Example

Dimensional Drawing

Specification Table

Material: PA + glass fiber

Part Number		Opening/Closing Method	B	C	W	P	R	Number of Links	H1	Required space Height H	Recommended Height Safety Margin	Bi	E	Number of Connector Teeth
Type	A
	Inner Height		External Height	Inner Width	External Width	Link Pitch	Bending Radius		(Mounting Height)
C-MHF	10	Cannot be opened or closed	14	10	17	20	18 28 38	10 ~ 65	50 70 90	60 80 100	100 130 160	10	—	1
				15	22							15	—	2
				20	27							20	—
				30	37							30	22	3
				40	47							40	32	4
	15		19	10	18		28 38 48		75 95 115	90 110 130	130 160 195	10	—	1
				15	23							15	—	2
				20	28							20	—
				30	38							30	22	3
				40	48							40	32	4
				50	58							50	42	5

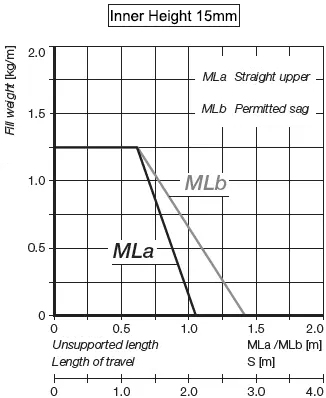

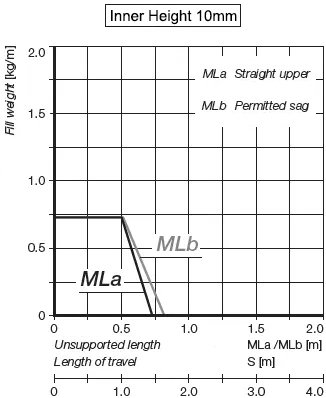

Overhead Load

Technical Data

Speed/Acceleration MLa	max. 8 [m/s] / max. 40 [m/s²]
Speed/Acceleration MLb	max. 2 [m/s] / max. 4 [m/s²]
Gliding speed/Acceleration	max. 4 [m/s] / max. 25 [m/s²]
Permitted temperature	-40°C to 120°C
Flammability class	UL94 HB

Usage Method

Example of Use

Commonly used in the electronics and semiconductor industries
Can be used with motion/drag chain cables
