Lead Screw Nuts Wide Block

The Nuts for Lead Screws is a sliding feed screw that meets the 30-degree Lead Screw Standard. It is mainly used in transmission (feeding and lifting) and position adjustment devices and has a certain degree of self-locking.
The female thread of the Economy Series trapezoid screw is processed with a high precision tap to ensure 7H precision.
The material is alloy copper; a variety of specifications are available, and female thread specifications can be selected according to the Economy series Nuts for Lead Screws.
Used with Economy series trapezoid screw nuts, it ensures consistent thread clearance, and you do not need to worry about inter-matching when replacing the nut later.
Nuts for Lead Screws is processed with a high precision tap to ensure screw matching precision MISUMI logo quality assurance

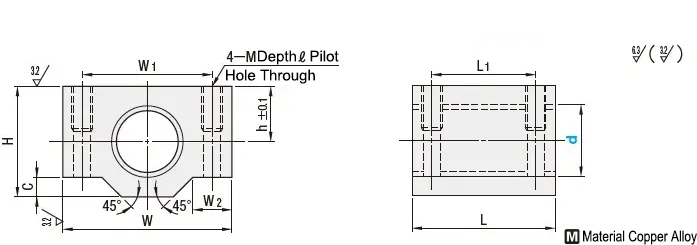

Part No.		Thread Pitch P	h	W	H	L	L1	W1	C	M	ℓ	Allowable Dynamic Thrust (kN)	Mass (g)
Type of Nuts for Lead Screws	Screw Nominal d
C－MTSBHRC C－MTSBHLC	10	2	10	30	20	24	16	20	4	M4	8	2.17	87
	12		11	38	22	30	20	26	5	M5	10	3.33	147
	14	3										4.17	140
	16		14	44	28	35	24	32				5.67	267
	20	4	16	48	32	40	28	36	5	M6	12	8.34	357
	22	5	20	62	38	50	34	46	10	M8	16	10.51	670
	25											12.09	629

Nuts for Lead Screws is processed with a high precision tap to ensure screw matching precision.
MISUMI logo quality assurance.

1. Do not drop the Nuts for Lead Screws or hit it against the table. Dents or distortions may occur in the screw parts, causing malfunctions.
2. Nuts for Lead Screws Wear protective gloves when touching the product.

For highly-demand occasions (Heavy Duty or Precision), please use a wider range of MISUMI Standard Products (left and right threads/low-temperature black chrome plating surface treatment availalble)
