Cable Carriers Medium Load, Inner Height 25mm, Separator (Separator Attachable)

Brand :

MISUMI

Caution

Product Description

This is an economy item, The price is cheaper than the MISUMI standard product.

Product Overview

Cable carrier/cable protection chain can prevent cables or air tubes connected to the moving parts of equipment from twisting, stretching, and entanglement due to movement.

(1) Inner height options: 22 mm, 25 mm, 35 mm. Medium load capacity, suitable for workstations requiring higher strength and longer travel distance.
Inner width 25 mm-125mm
(2) The crossbar can be opened along the inner or outer diameter, making assembly and disassembly easy. Dividers can be added for easier wiring.
(3) Material: Imported PA + glass fiber.

Cross-sectional view of the link

Inner height: 22 mm Outer height: 28 mm
Maximum cable outer diameter: 20 mm

Inner height 25 mm, outer height 35 mm
Maximum cable outer diameter: 23 mm

Inner height 35 mm, outer height 49 mm
Maximum cable outer diameter: 32 mm

Technical Data

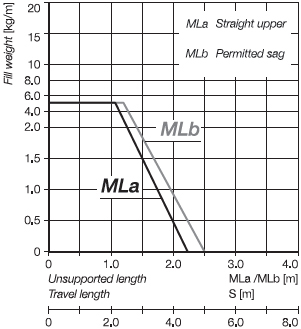

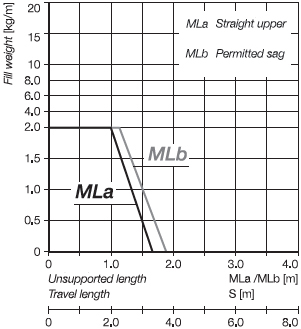

Speed/Acceleration MLa	max.10[m/s]/max.50[m/s²]
Speed/Acceleration MLb	max.3[m/s]/max.6[m/s²]
Gliding speed/Acceleration	max.5[m/s]/max.30[m/s²]
Permitted temperature	-40°C to 120°C
Flame Retardant Grade Flammability class	UL94 HB

Inner Height 22

Inner Height 25

Inner Height 35

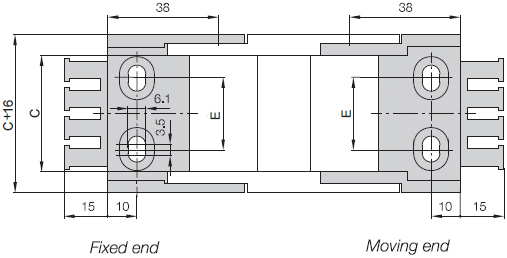

Dimensional Drawing

Connector Size

Inner Height 22

Inner Height 25

Inner Height 35

Joint Mounting Method
igus

Material: PA

Separator

Inner Height 22

Inner Height 25

Inner Height 35

Specification Table

Part Number		External Height B	Inner Width C	External Width W	Hole Pitch E	Connector Number of Teeth	Link Pitch P	Available Bending Radius R	Number of Links (Corresponding Length)	Installation Optional Accessories		Installation Size (Corresponding Bending Radius)			Required space Height H_F	Weight kg/m ≈
Type	Inner Height A									Separator	Separator Quantity	H	D	K
E-MPU (Opens outward) E-MPD (Opens inward)	22	28	20	33	-	2	33	35 38 48 75 100	10 to 68 (330 mm~ 2244 mm)	S22	4 to 68	98 104 124 178 228	82 85 95 122 147	180 190 220 305 380	H+25	0.42
			25	38	11	2										0.49
			40	53	26	4										0.54
			50	63	36	5										0.56
			70	83	56	7										0.63
			80	93	66	8										0.67
			100	113	86	10										0.74
			125	138	111	13										0.83
	25	35	25	41	14	3	45	55 75 100 125 150	10 to 68 (450 mm~ 3060 mm)	S25	4 to 65	145 185 235 285 335	118 138 163 188 213	265 330 405 485 565	H+25	0.75
			40	56	25	4										0.82
			55	71	44	6										0.87
			75	91	64	8										0.96
			90	106	77	9										1.05
			100	116	90	10										1.11
			125	141	112	12										1.20
	35	49	50	67	30	5	55	65 75 100 125 150 200	10 to 68 (550 mm~ 3740 mm)	S35	4 to 65	179 199 249 299 349 449	145 155 180 205 230 280	315 350 425 505 585 740	H+35	0.87
			75	92	55	7										0.97
			100	117	80	10										1.12
			125	142	105	12										1.21

Connector comb plates and separator plates can be added when selecting products. For details on the quantity of connector comb plates and separator plates, please refer to the MISUMI sales website.

Precautions

If it is a brand new design, there may not be enough links in the drag chain. It is recommended to choose Link 1 or 2 as a spare and adjust (disassemble) when installing the device.
Confirm whether the cable has too much contact with the inner and outer sides of the cable protection chain in the whole stroke range

Assembly Instructions
