Workpiece Inversion Device 2

Specifications and Features

Purpose/Function: Transport/Movement

A device that flips workpieces with distinct front and back sides and transfers them to a conveyor for subsequent processing.
Often used to rotate workpieces in the opposite direction to shorten production intervals.
Widely applied in the automotive and electronic components, medical device processing and manufacturing industries.

※ This example is for design reference only. Equipment components may differ from the actual shape.

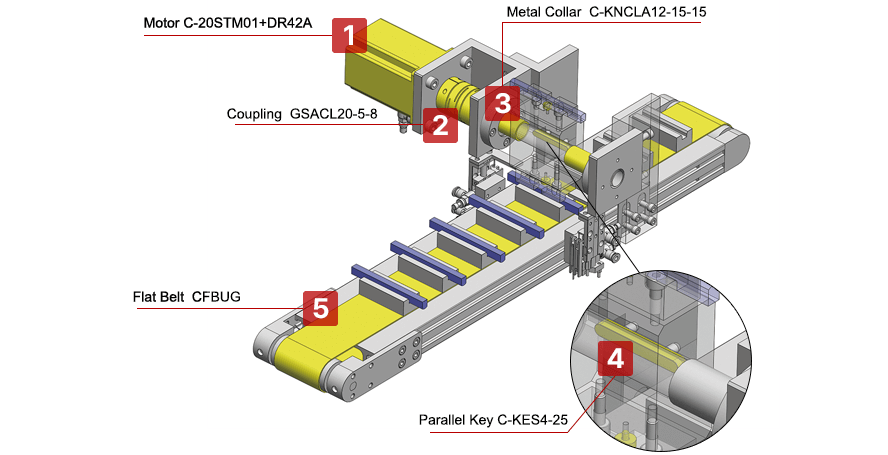

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Motor	C-20STM01+DR42A	Type: Motor + Driver 20 series Motor length: 33mm Lead wires: 4 Holding torque: 0.018N·m	1	IDR 983,998/Piece
②	Coupling	GSACL20-5-8	Groove type Outer diameter (φ): 20mm Shaft hole diameter D1(φ): 5mm Shaft hole diameter D2(φ): 8mm	1	IDR 149,387/Piece
③	Metal Collar	C-KNCLA12-15-15	Inner diameter: 12mm Outer diameter: 15mm Thickness/Length: 15mm	2	IDR 19,108/Piece
④	Parallel Key	C-KES4-25	Shape: Rounded on both ends Width: 4mm Total length: 25mm	1	IDR 5,366/Piece
⑤	Flat Belt	CFBUG	Surface material: Polyurethane Belt width W: 50mm Circumference length: 1.6m Surface cover: Green glossy surface	1	IDR 249,582/Piece
