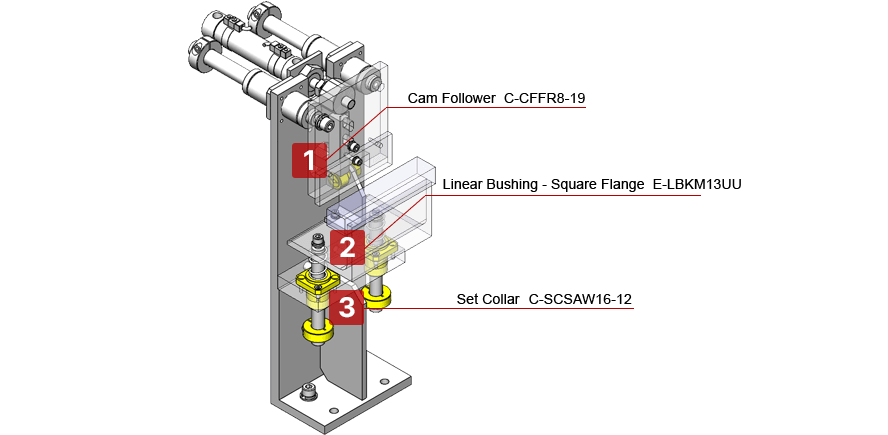

Cutting Unit
Specifications and Features
- Purpose/Function
- Transport/Movement Supply/Discharge Ejection/Accumulation
1 cylinder 2 operation using cam mechanism
Combining a guide avoidance mechanism using a pusher and cam for cutting, allowing two operations with a single cylinder.
Sequence of operation: ① Cylinder rises ② Cam mechanism shutter opens ③ Work is cut ④ Cylinder returns ⑤ Cam mechanism shutter closes.
A mechanism that links the return guide and pusher, and configures the shutter opening and cutting timing design by the cam mechanism.
Combining a guide avoidance mechanism using a pusher and cam for cutting, allowing two operations with a single cylinder.
Sequence of operation: ① Cylinder rises ② Cam mechanism shutter opens ③ Work is cut ④ Cylinder returns ⑤ Cam mechanism shutter closes.
A mechanism that links the return guide and pusher, and configures the shutter opening and cutting timing design by the cam mechanism.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Cam Follower | C-CFFR8-19 | Screw part nominal (M)(mm): M8x1.25 Material: Carbon steel Fastening method: With screwdriver slot Basic load rating Cr(dynamic)(kN): 3.5 Allowable rotational speed (rpm): 11000 |
1 | IDR 81,833/Piece |
| ② | Linear Bushing - Square Flange | E-LBKM13UU | Inner circle diameter dr(φ): 13 Total length L(mm): 32 Outer tube material: Steel Outer tube surface treatment: Electroless nickel plating |
2 | IDR 67,773/Piece |
| ③ | Shaft Collar | C-SCSAW16-12 | Inner diameter V(mm): 16 Width (mm): 12 Material: Aluminum Surface treatment: White anodizing |
2 | IDR 48,425/Piece |
※ VAT is excluded in these prices, and the specific details are based on the website quote.
Product List
1
2
3
※ The price on the product list is the starting price for that product.
-
