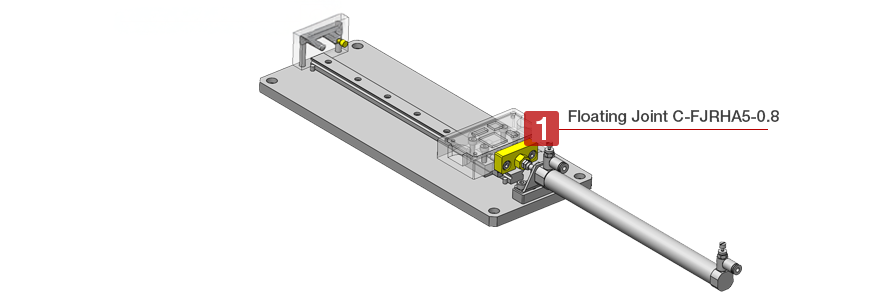

Cylinder Direct-Acting Mechanism
Specifications and Features
- Purpose/Function
- Transport/Movement Drive/Actuation
Table movement through stroke fine adjustment attachment
Slide the table using cylinder drive.
The forward stroke end is equipped with a shock absorber to avoid shock stops and the stopper is positioned at the center of the load.
Slide the table using cylinder drive.
The forward stroke end is equipped with a shock absorber to avoid shock stops and the stopper is positioned at the center of the load.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Floating Joint | C-FJRHA5-0.8 | Connection screw nominal M(mm): M5 Material: Steel Surface treatment: Hard chrome plating |
1 | IDR 73,234 /Piece |
※ VAT is excluded in these prices, and the specific details are based on the website quote.
Product List
1
※ The price on the product list is the starting price for that product.
-
