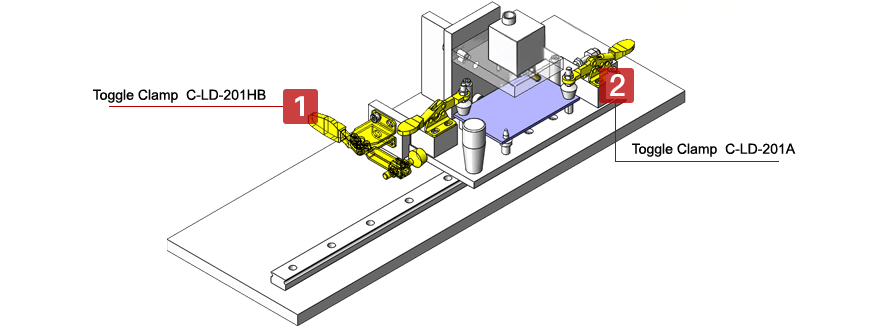

Precision Visual Inspection Using Camera
Specifications and Features
- Purpose/Function
- Transport/Movement Positioning/Clamp Inspection/Measurement
Reproducibility of positioning of manual jigs.
Set the workpiece and secure it with a toggle clamp, then visually inspect the monitor image using a camera.
Toggle clamps are selected as top and bottom types for workpieces that can only be held by their upper and lower surfaces.
Environment/Operability: A mechanism that sets the workpiece in a wide space using a linear guide, moves it under the camera, and secures it with a toggle clamp.
Set the workpiece and secure it with a toggle clamp, then visually inspect the monitor image using a camera.
Toggle clamps are selected as top and bottom types for workpieces that can only be held by their upper and lower surfaces.
Environment/Operability: A mechanism that sets the workpiece in a wide space using a linear guide, moves it under the camera, and secures it with a toggle clamp.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Toggle Clamp | C-LD-201HB | Clamp bolt size: M5 Material: Steel (body), Steel (bolt) Clamping pressure (N): 400 |
1 | IDR 41,180/Piece |
| ② | Toggle Clamp | C-LD-201A | Clamp bolt size: M4 Material: Nylon (body), Nylon (bolt) Clamping pressure (N): 264 |
2 | IDR 28,167/Piece |
※ VAT is excluded in these prices, and the specific details are based on the website quote.
Product List
1
2
※ The price on the product list is the starting price for that product.
-
