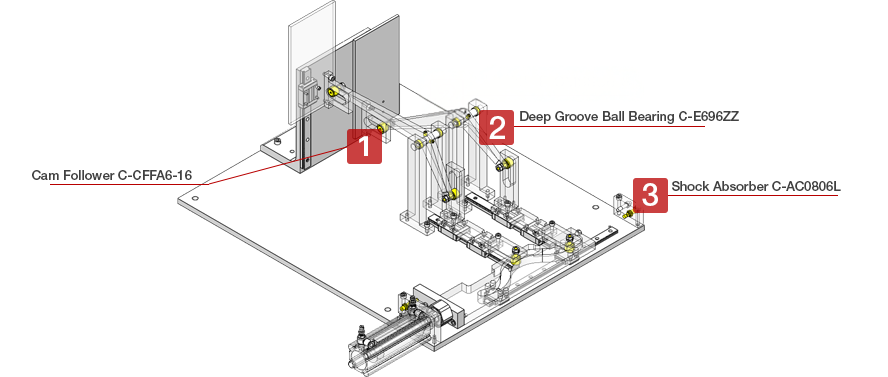

Escape Shutter by Cam and Link
Specifications and Features
- Purpose/Function
- Transport/Movement
The workpiece is transported by a conveyor, and the chuck is moved smoothly using a
rotation-preventing cylinder.
The cam follower moves smoothly along the cam's groove.
The cam follower moves smoothly along the cam's groove.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Cam Follower | C-CFFA6-16 | Screw part nominal (M)(mm): M6×1.0 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 3.15 Allowable rotational speed (rpm): 14000 |
6 | IDR 78,875/Piece |
| ② | Deep Groove Ball Bearing | C-E696ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 945 Allowable rotational speed (RPM): 28000 |
4 | IDR 9,671/Piece |
| ③ | Shock Absorber | C-AC0806L | Stroke (mm): 6 Maximum impact speed (m/s): 0.5 Maximum absorbed energy (J): 2.5 Body material: Steel |
2 | IDR 142,887/Piece |
※ VAT is excluded in these prices, and the specific details are based on the website quote.
