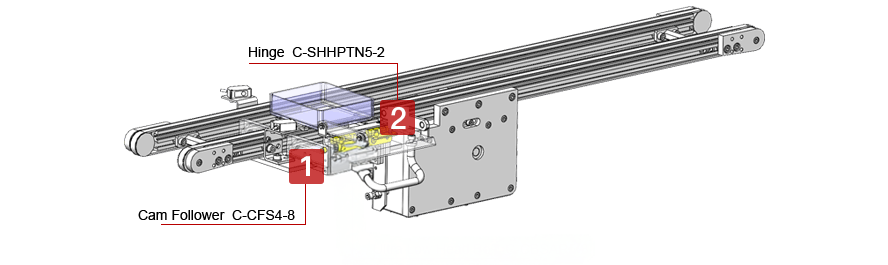

Door Interlocking Lifter
Specifications and Features
- Purpose/Function
- Transport/Movement
When removing the work tray transported by the belt conveyor within the device, the box can be
easily removed without touching the belt.
In conjunction with the door, the work tray is lifted onto the belt and moved towards the door.
Can be applied in narrow spaces because the door can be made smaller.
In conjunction with the door, the work tray is lifted onto the belt and moved towards the door.
Can be applied in narrow spaces because the door can be made smaller.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Cam Follower | C-CFS4-8 | Screw part nominal (M)(mm): M4×0.7 Material: Stainless steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 0.57 Allowable rotational speed (rpm): 750 |
4 | IDR 192,054/Piece |
| ③ | Hinge | C-SHHPTN5-2 | Width (W)(mm): 48 Length (mm): 41 Main body material: Steel Main body surface treatment: Chrome plating |
2 | IDR 32,625/Piece |
※ VAT is excluded in these prices, and the specific details are based on the website quote.
Product List
1
2
※ The price on the product list is the starting price for that product.
-
