Economy Toggle ClampsWide lineup: horizontal, vertical, horizontal pressure, door holder types
High-quality low-carbon steel with zinc plating finish
Same-day shipping lineup available
Product Features

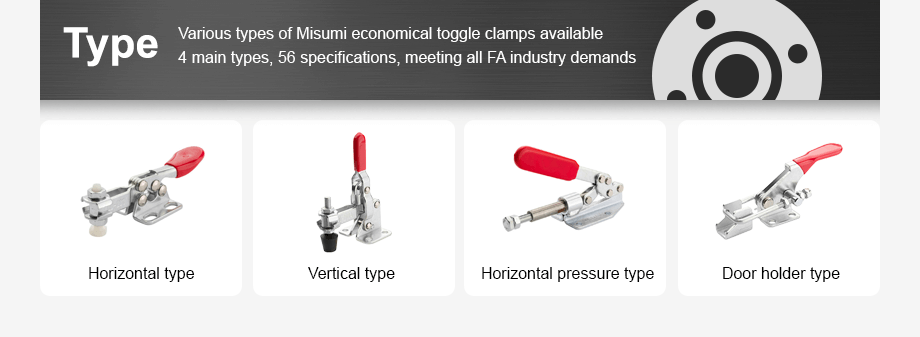

Type
Various types of Misumi economical toggle clamps available 4 main types, 56 specifications, meeting all FA industry demands
Various types of Misumi economical toggle clamps available 4 main types, 56 specifications, meeting all FA industry demands
- Horizontal type
- Vertical type
- Horizontal pressure type
- Door holder type

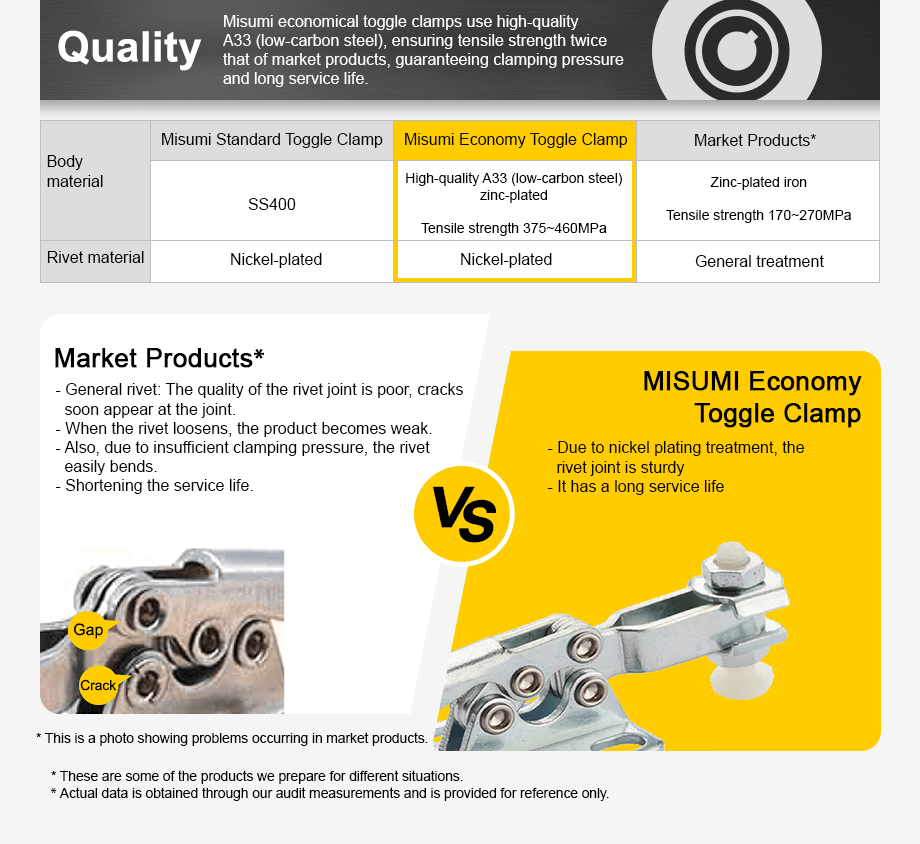

quality
Misumi economical toggle clamps use high-quality A33 (low-carbon steel), ensuring tensile strength twice that of market products, guaranteeing clamping pressure and long service life.
Misumi economical toggle clamps use high-quality A33 (low-carbon steel), ensuring tensile strength twice that of market products, guaranteeing clamping pressure and long service life.
| Body material | MISUMI standard toggle clamp | MISUMI economic toggle clamp | Market distribution product※ |
|---|---|---|---|
| SS400 | High-quality A33 (low-carbon steel) zinc-plated, Tensile strength 375~460MPa | Zinc-plated iron , Tensile strength 170~270MPa | |
| Rivet Material | Nickel Plated Rivet | Nickel Plated Rivet | Normal Rivet |
Market Products*
- General rivet: The quality of the rivet joint is poor, cracks soon appear at the joint.
- When the rivet loosens, the product becomes weak.
- Also, due to insufficient clamping pressure, the rivet
easily bends.
- Shortening the service life. VS MISUMI Economy Toggle Clamp - Due to nickel plating treatment, the rivet joint is sturdy
- It has a long service life ※ These are some of the products we prepare for different situations.
※ Actual data is obtained through our audit measurements and is provided for reference only.
- General rivet: The quality of the rivet joint is poor, cracks soon appear at the joint.
- When the rivet loosens, the product becomes weak.
- Also, due to insufficient clamping pressure, the rivet
easily bends.
- Shortening the service life. VS MISUMI Economy Toggle Clamp - Due to nickel plating treatment, the rivet joint is sturdy
- It has a long service life ※ These are some of the products we prepare for different situations.
※ Actual data is obtained through our audit measurements and is provided for reference only.
Delivery
Misumi economical toggle clamps are being progressively stocked, So we have many same-day shipping lineups available.
Misumi economical toggle clamps are being progressively stocked, So we have many same-day shipping lineups available.

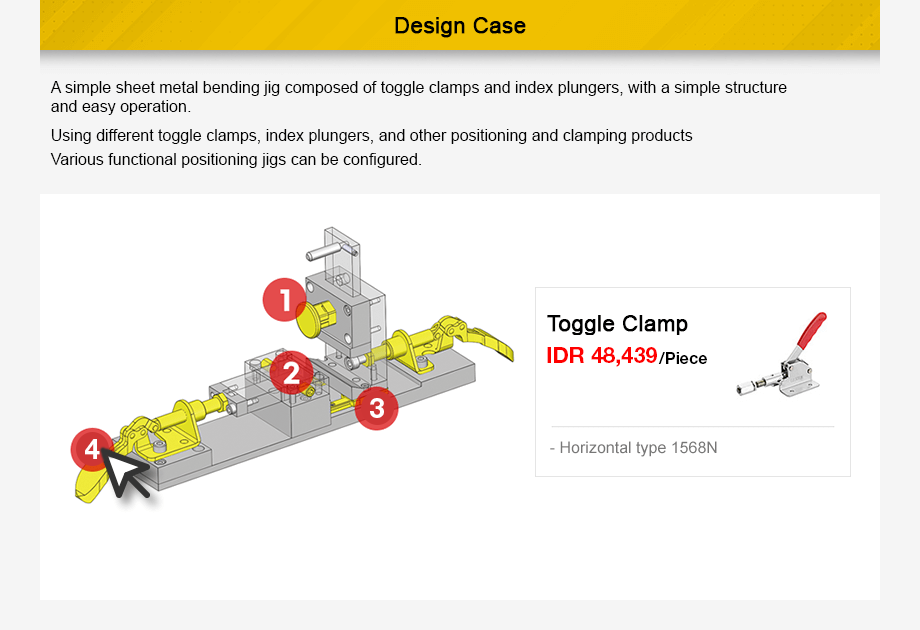

Design Case
Take a closer look
A simple sheet metal bending jig composed of toggle clamps and index plungers, with a simple structure and easy
operation.
Using different toggle clamps, index plungers, and other positioning and clamping products.
Various functional positioning jigs can be configured.
Using different toggle clamps, index plungers, and other positioning and clamping products.
Various functional positioning jigs can be configured.
Toggle clamp
474.00/Piece
Horizontal type 1568N
474.00/Piece
Horizontal type 1568N
