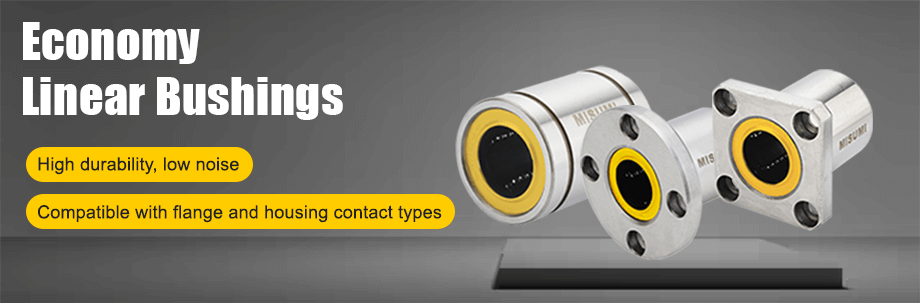

Economy Linear BushingsHigh durability, low noise
Compatible with flange and housing contact types
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- Website MISUMI akan di-upgrade untuk pengalaman pemesanan yang lebih baik. Mohon diperhatikan, kantor MISUMI akan tutup pada 26 September & website MISUMI menjalani maintenance mulai 25 September (17.30) – 28 September (08.30). Akun anda mungkin keluar (log-out) otomatis setelah pembaruan website ini. Jika lupa akun Anda, klik Lupa Login ID atau Lupa Password.
MISUMI website will be upgraded for a better ordering experience. Please note that the MISUMI office will be closed on 26 September, and the MISUMI website will undergo maintenance from 25 September (17:30) until 28 September (08:30). Your account may be automatically logged out after this website update. If you have forgotten your account details, click Forgot Login ID or Forgot Password
Economy Linear BushingsHigh durability, low noise
Compatible with flange and housing contact types
Product Features
High durability - Low noise
Test conditions

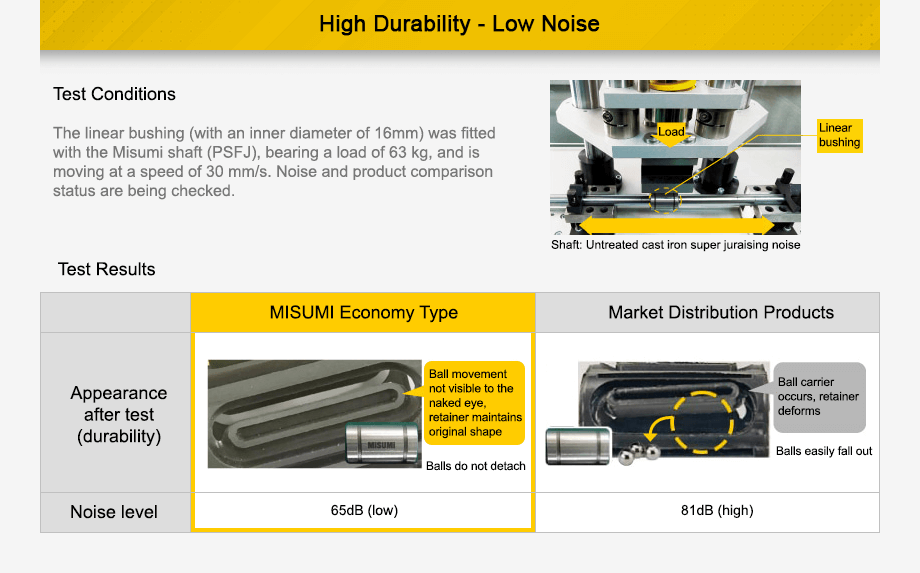

The linear bushing (with an inner diameter of 16mm) was fitted with the Misumi shaft (PSFJ), bearing a load of 63 kg, and is moving at a speed of 30 mm/s. Noise and product comparison status are being checked.
※ You can select between a standard flange, light/standard type, and a guide type that interacts with the flange
contact cylinder.
Test conditions
The linear bushing (with an inner diameter of 16mm) was fitted with the Misumi shaft (PSFJ), bearing a load of 63 kg, and is moving at a speed of 30 mm/s. Noise and product comparison status are being checked.
| Misumi Economy Type | Market Distribution Product | |
|---|---|---|
| Appearance after test (durability) | Ball movement not visible to the naked eye, retainer maintains original shape Balls do not come off |
Ball jamming occurs and the retainer becomes deformed, making it easy for the ball to fall out Ball disengagement |
| Noise level | 65dB(low) | 81dB(high) |

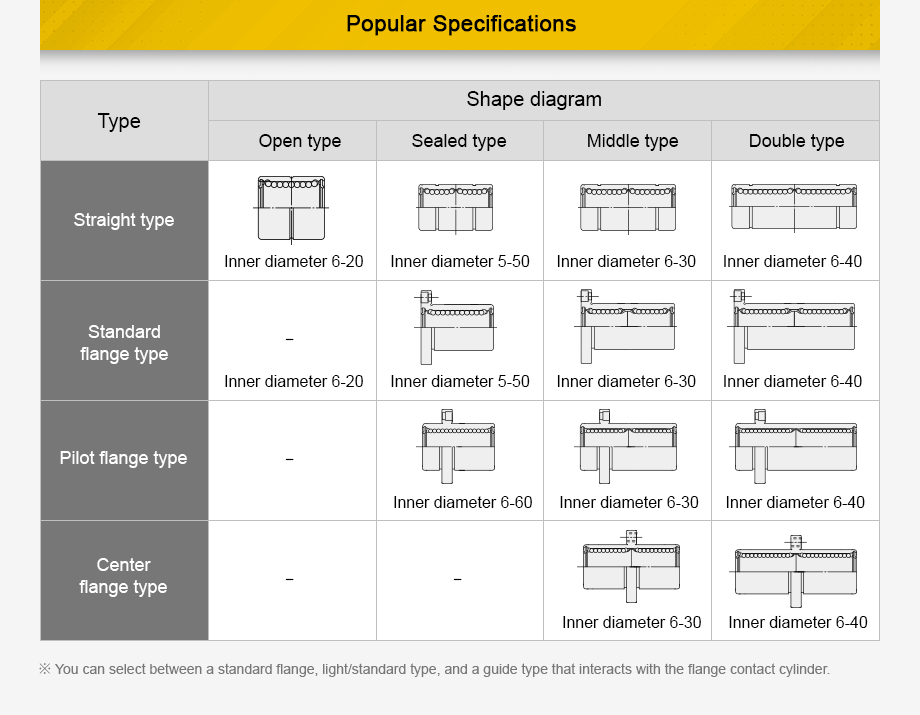

| Type | Shape diagram | |||
| Short type | Single type | Middle type | Double type | |
| Straight type | Inner diameter 6~20 | Inner diameter 5~20 | Inner diameter 6~30 | Inner diameter 6~40 |
| Standard flange type | - | Inner diameter 5~50* | Inner diameter 6~30 | Inner diameter 6~40* |
| Pilot flange type | - | Inner diameter 6~40 | Inner diameter 6~30 | Inner diameter 6~40 |
| Center flange type | - | - | Inner diameter 6~30 | Inner diameter 6~40 |
Design case
Take a closer look
Hole depth inspection jig

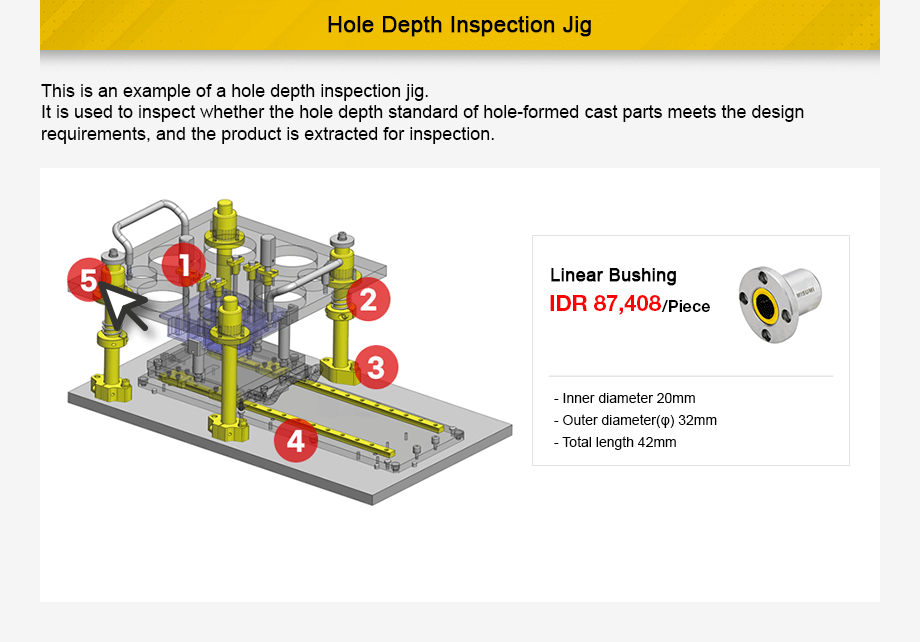

This is an example of a hole depth inspection jig. It is used to inspect whether the hole depth standard of hole-formed cast parts meets the design requirements, and the product is extracted for inspection.
This is an example of a hole depth inspection jig. It is used to inspect whether the hole depth standard of hole-formed cast parts meets the design requirements, and the product is extracted for inspection.
Linear Bushing
Starting from ₹135.00 /Unit
- Inner diameter 20mm
- Outer diameter(φ) 32mm
- Total length 42mm
Starting from ₹135.00 /Unit
- Inner diameter 20mm
- Outer diameter(φ) 32mm
- Total length 42mm
Recommanded Products
Note: Please check the current specification, price and delivery date again from the product page.
-
