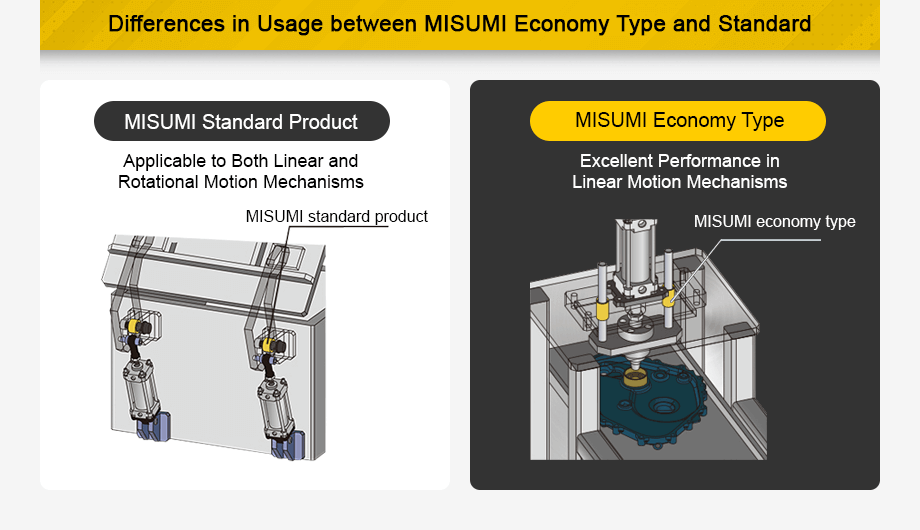

Differences in Usage between Misumi Economical Type and Standard

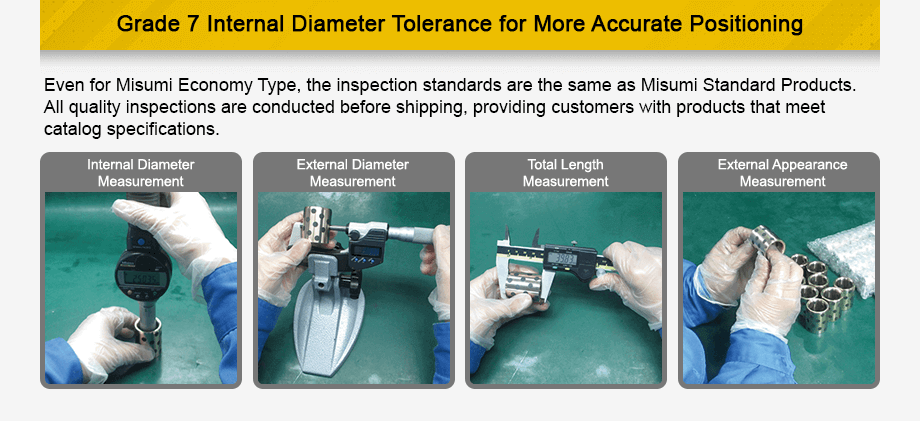

Grade 7 Internal Diameter Tolerance for More Accurate Positioning
Even for Misumi Economy Type, the inspection standards are the same as Misumi Standard Products.
All quality inspections are conducted before shipping, providing customers with products that meet catalog specifications.
Internal Diameter Measurement / External Diameter Measurement / Total Length Measurement / External Appearance Measurement

Smoother linear motion with a smooth surface

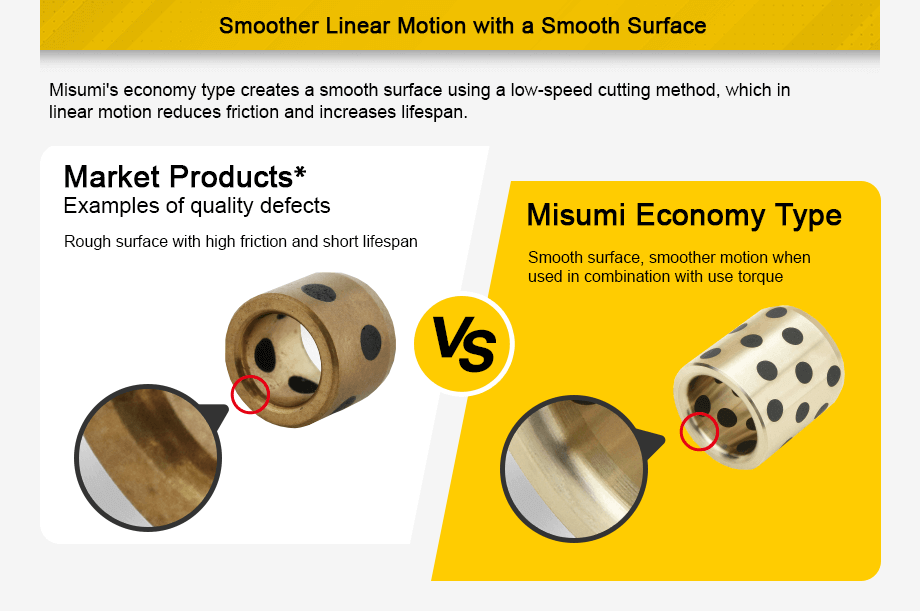

Misumi's economical type creates a smooth surface using a low-speed cutting method, which in linear motion reduces friction and increases lifespan. VS

Stock of various specifications available, shipped within 1 day at the shortest

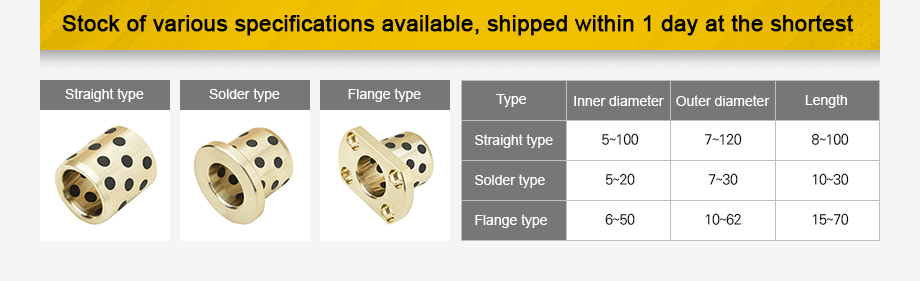

Straight type / Solder type / Flange type

Type	Inner diameter	Outer diameter	Length
Straight type	5~100	7~120	8~100
Solder type	5~20	7~30	10~30
Flange type	5~50	10~62	15~70

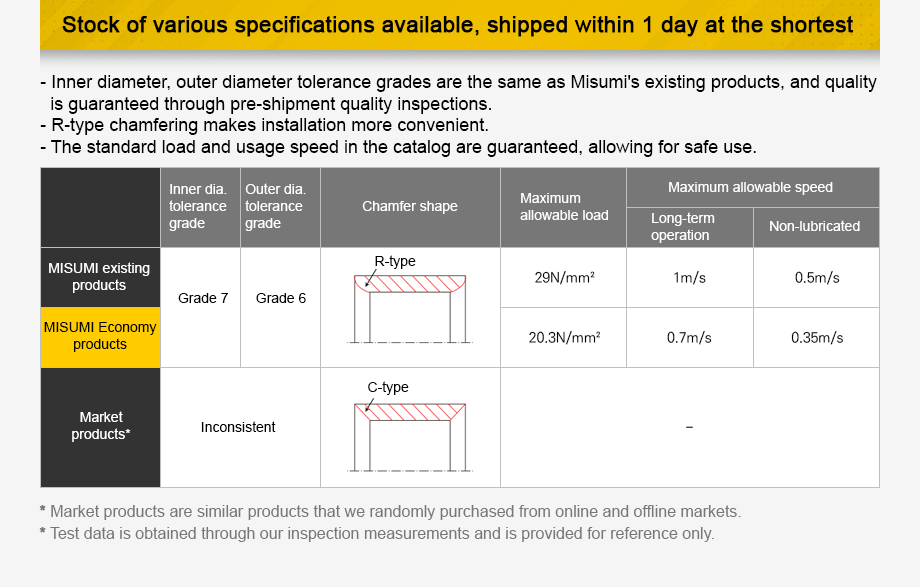

- Inner diameter, outer diameter tolerance grades are the same as Misumi's existing products, and quality is guaranteed through pre-shipment quality inspections.
- R-type chamfering makes installation more convenient.
- The standard load and usage speed in the catalog are guaranteed, allowing for safe use.

	Inner diameter tolerance grade	Outer diameter tolerance grade	Chamfer shape	Maximum allowable load	Maximum allowable speed
					Long-term operation	Non-lubricated
MISUMI existing products	Grade 7	Grade 6	R Type	29N/mm²	1m/s	0.5m/s
Misumi Economy Type				20.3N/mm²	0.7m/s	0.35m/s
Market Product*	Inconsistent	C Type	-

* Market products are similar products that we randomly purchased from online and offline markets
* Test data is obtained through our inspection measurements and is provided for reference only

Hole Depth Inspection Jig

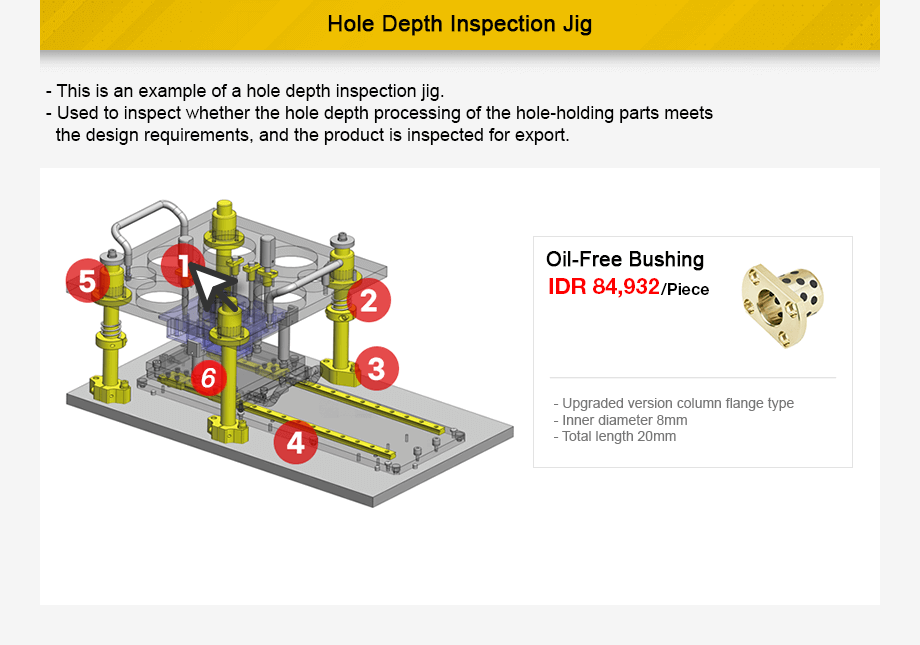

- This is an example of a hole depth inspection jig.
- Used to inspect whether the hole depth processing of the hole-holding parts meets the design requirements, and the product is inspected for export.
