View all Economy
Timing Belts
Economy Timing Belts- Various sizes available
- Supports short lead time
- High positioning accuracy
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
Economy Timing Belts- Various sizes available
- Supports short lead time
- High positioning accuracy
Product Features

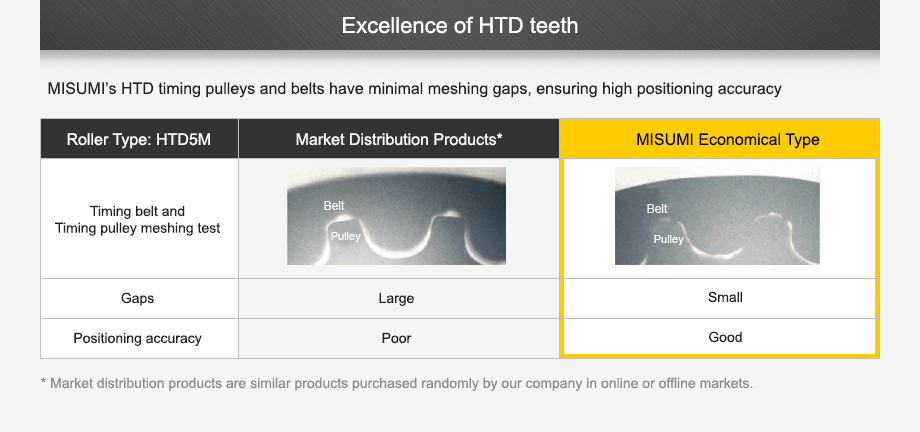

Excellence of HTD teeth
MISUMI’s HTD timing pulleys and belts have minimal meshing gaps, ensuring high positioning accuracy.
* Market distribution products are similar products purchased randomly by our company in online or offline markets.
MISUMI’s HTD timing pulleys and belts have minimal meshing gaps, ensuring high positioning accuracy.
| Roller Type: HTD5M | Market Distribution Products* | MISUMI Economy Type |
| Timing belt and Timing pulley meshing test | ||
| Gaps | Large | Small |
| Positioning accuracy | Poor | Good |

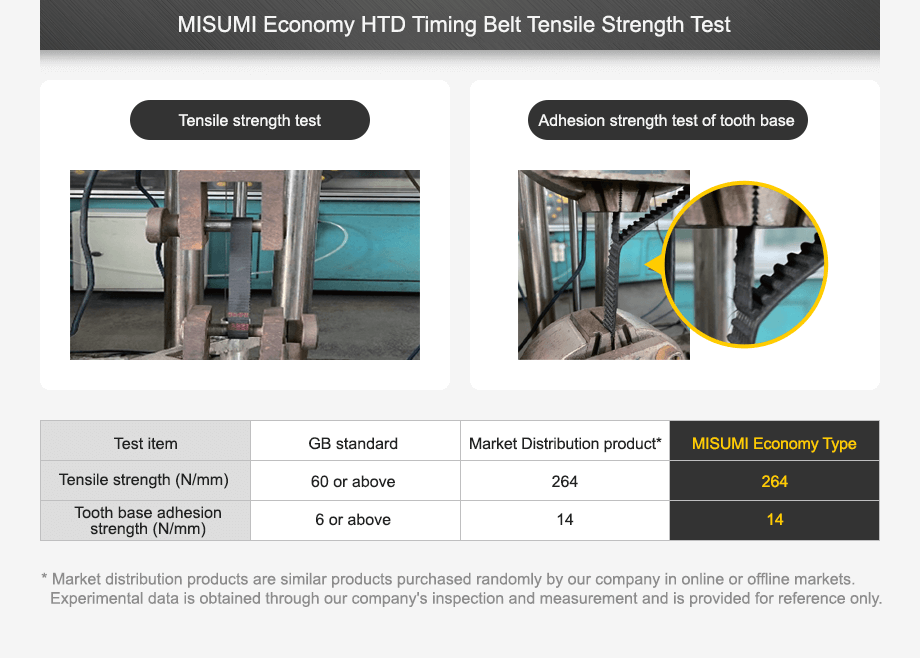

MISUMI Economy HTD Timing Belt Tensile Strength Test
Tensile strength test
Adhesion strength test of tooth base
* Market distribution products are similar products purchased randomly by our company in online or offline markets.
Experimental data is obtained through our company's inspection and measurement and is provided for reference only.
Tensile strength test
Adhesion strength test of tooth base
| Test items | GB standard | Market distribution products | Misumi economy type |
| Tensile strength (N/mm) | 60 or above | 264 | 284 |
| Tooth base adhesion strength (N/mm) | 6 or above | 14 | 16 |
Experimental data is obtained through our company's inspection and measurement and is provided for reference only.
design Case
Take a closer look

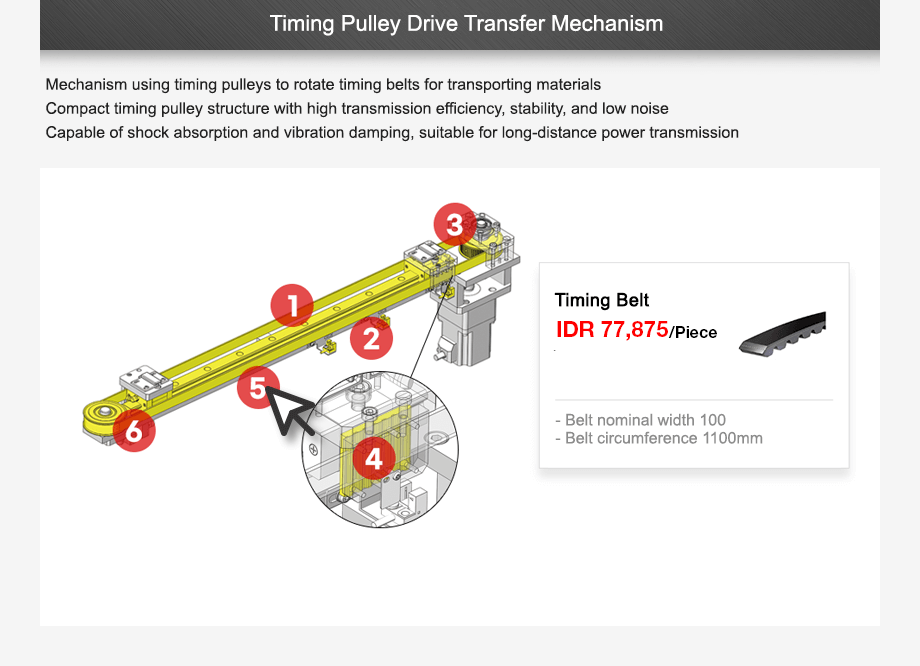

Timing Pulley Drive Transfer Mechanism
Mechanism using timing pulleys to rotate timing belts for transporting materials.
Compact timing pulley structure with high transmission efficiency, stability, and low noise.
Capable of shock absorption and vibration damping, suitable for long-distance power transmission.
Mechanism using timing pulleys to rotate timing belts for transporting materials.
Compact timing pulley structure with high transmission efficiency, stability, and low noise.
Capable of shock absorption and vibration damping, suitable for long-distance power transmission.
Timing Belt
₹ 776.00 /Unit
Tax excluded
- Belt nominal width 100
- Belt circumference 1100mm
₹ 776.00 /Unit
Tax excluded
- Belt nominal width 100
- Belt circumference 1100mm
Recommanded Products
Note: Please check the current specification, price and delivery date again from the product page.
-
