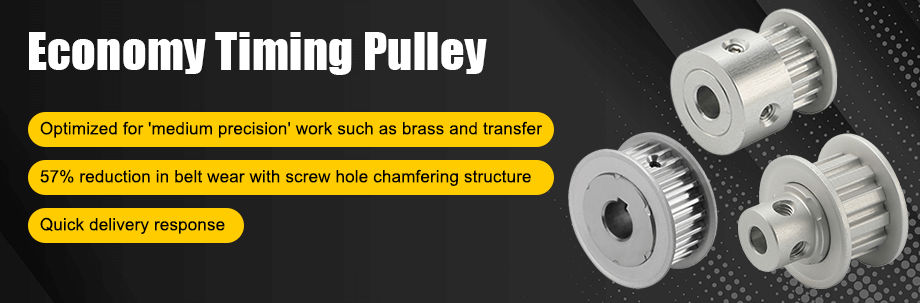

Economy Timing Pulley
Optimized for 'medium precision' work such as brass and transfer
57% reduction in belt wear with screw hole chamfering structure
Quick delivery response

Product Features

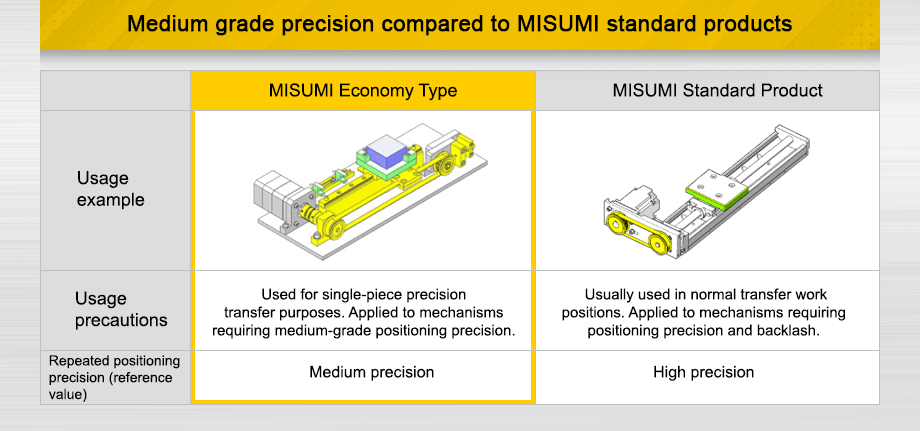

medium grade precision compared to misumi standard products

	Misumi Economical Type	Misumi Standard Product
Usage examples	Misumi Economy Image	Misumi Existing Product Image
Usage Precautions	Used for single-piece precision transfer purposes, Applied to mechanisms requiring medium-grade positioning precision	Usually used in normal transfer work positions, Applied to mechanisms requiring positioning precision and backlash.
Repeated positioning precision (reference value)	Medium precision	High precision

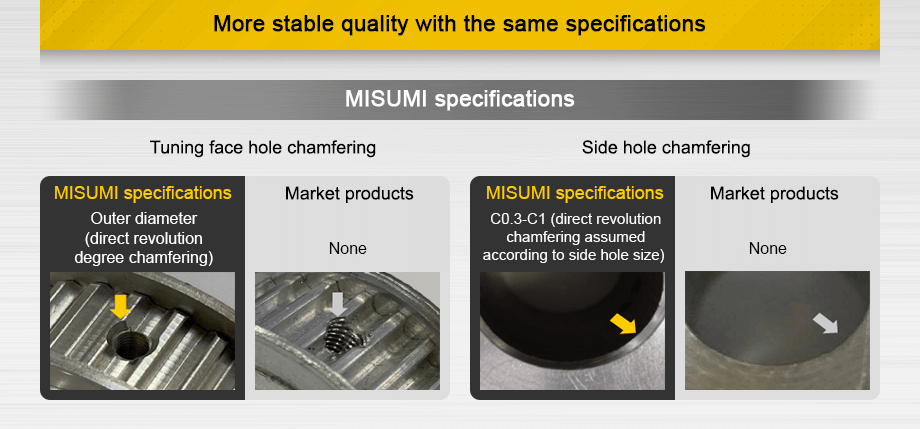

More stable quality with the same specifications MISUMI Specifications

MISUMI specifications
Outer diameter (direct revolution degree chamfering)
Market distribution products: None

MISUMI specifications
C0.3-C1 (direct revolution chamfering assumed according to side hole size)
Market distribution products: None

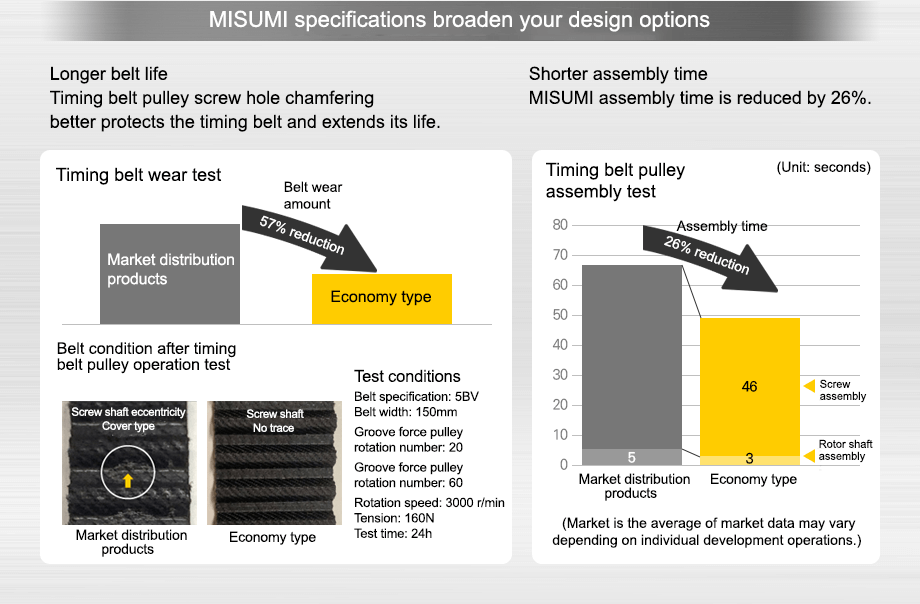

MISUMI specifications broaden your design options

Longer belt life
Timing belt pulley screw hole chamfering
better protects the timing belt and extends its life.
Shorter assembly time
MISUMI assembly time is reduced by 26%.
Timing belt wear test
Market distribution products
Belt wear amount
57% reduction
Economy type
Test conditions
Belt specification: 5BV
Belt width: 150mm
Groove force pulley
rotation number: 20
Groove force pulley
rotation number: 60
Rotation speed: 3000 r/min
Tension: 160N
Test time: 24h

Timing belt pulley assembly test
(Unit: seconds)
Assembly time 26% reduction
Screw assembly
Rotor shaft assembly ※ (Market is the average of market data may vary depending on individual development operations.)
