For cost reduction, A smart choice!
Economic idlers
Low Price, Quality Guarantee, Stock Availability

Product Features

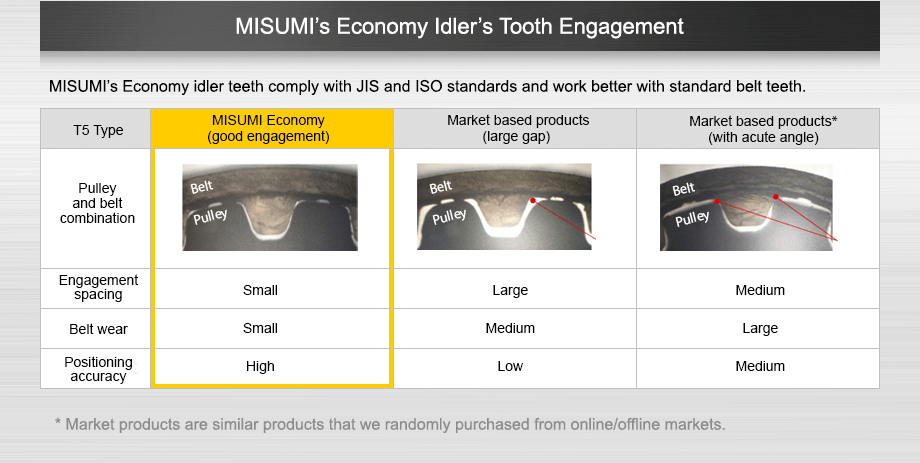

Misumi’s economy idler’s tooth engagement
Misumi’s economy idler teeth comply with JIS and ISO standards and work better with standard belt teeth

T5 Type	MISUMI Economy (good engagement)	Market based products (large gap)	Market based products* (with acute angle)
Pulley and belt combination	Sample image	Sample image	Sample image
Engagement spacing	Small	Large	Medium
Belt wear	Small	Medium	Large
Positioning accuracy	High	Low	Medium

※ Market products are similar products that we randomly purchased from online/offline markets.

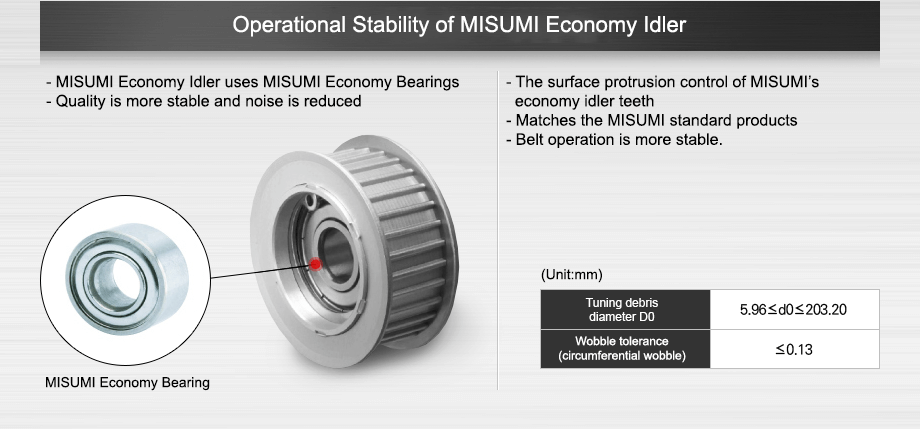

Operational stability of Misumi economy idler

Misumi economical idler uses Misumi economical bearings
Quality is more stable and noise is reduced
Misumi economical bearing

The surface protrusion control of Misumi’s economical idler teeth matches the Misumi standard products
Belt operation is more stable. (Unit:mm)

Tuning debris diameter D0	5.96≤d0≤203.20
Wobble tolerance (circumferential wobble)	≤0.13

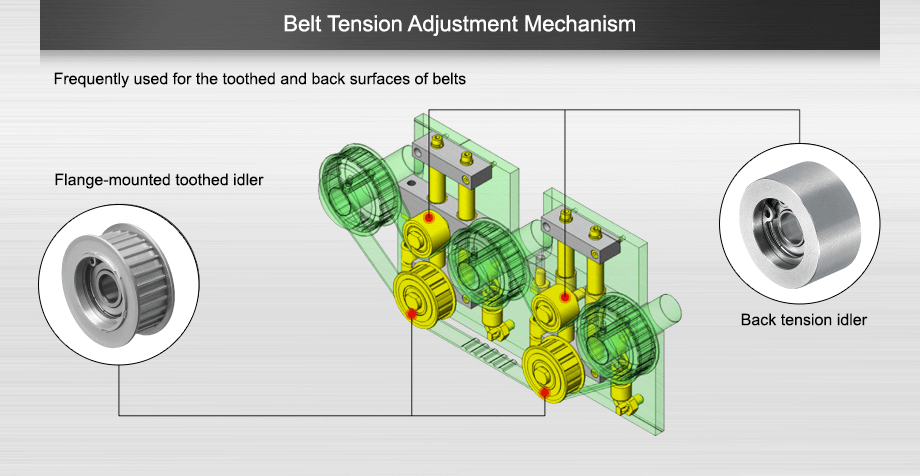

Belt tension adjustment mechanism
Frequently used for the toothed and back surfaces of belts
Flange-mounted toothed idler
Back tension idler
