Aluminum material / Unique shape / Space saving + Lightweight

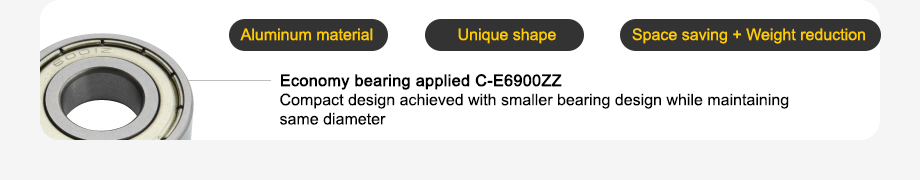

Economic bearing application C-E6900ZZ
Compact design with bearings of the same diameter but smaller size

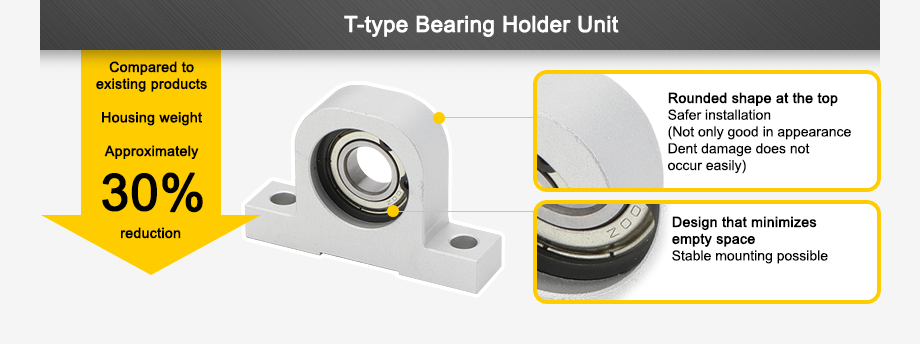

T-type bearing holder unit Housing weight reduced by about 30% compared to existing products Top is round More secure installation! (Not only does it look good, but it is also less likely to be damaged by being hit) Design that minimizes empty space Stable installation possible

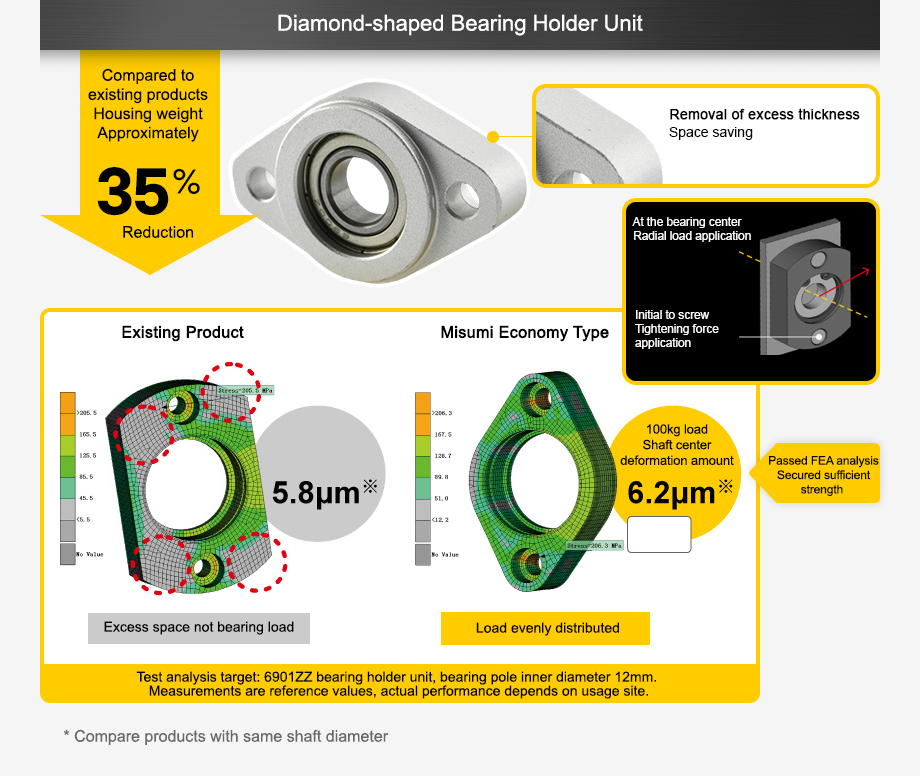

diamond bearing holder unit Approximately 35% reduction in housing weight compared to existing products Space saving by eliminating excess thickness

• Existing product 100kg load shaft center deflection 5.8㎛ Extra space without load
• Misumi economy type Load is evenly distributed 100kg load shaft center deflection 6.2㎛ Strength equivalent to standard products FEA analysis passed, sufficient strength secured

※ Test analysis target: 6901ZZ bearing holder unit, bearing hole inside diameter 12mm ※ Measurement values are reference values, and actual performance is determined depending on the site of use. ※ Compare products with the same shaft diameter
