View all Economy
Shaft Holders

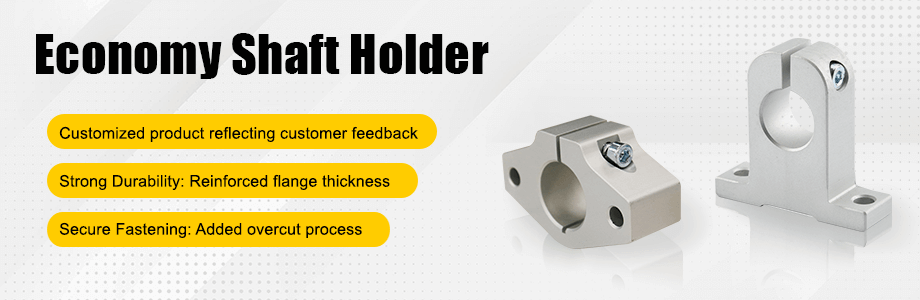

Economy Shaft Holders
Customized product reflecting customer feedback Strong Durability: Reinforced flange thickness
Secure Fastening: Added overcut process
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
Economy Shaft Holders
Customized product reflecting customer feedback Strong Durability: Reinforced flange thickness
Secure Fastening: Added overcut process

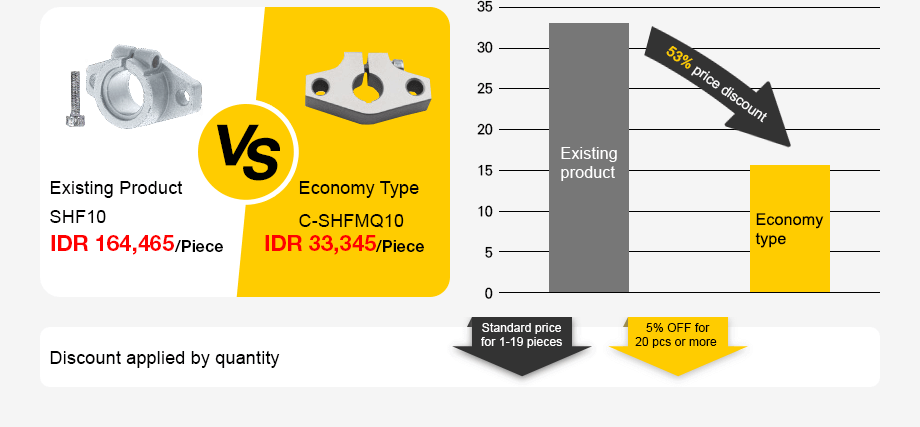

Product Features
Existing Product: SHF10, ₹ 837.64/ Piece
Economy Type: C-SHFMQ10, ₹ 281/ Piece
Existing product, 53% price discount, Economy typeEconomy Type: C-SHFMQ10, ₹ 281/ Piece
Discount applied by quantity
Standard price for 1-19 pieces
5% OFF for 20 pcs or more

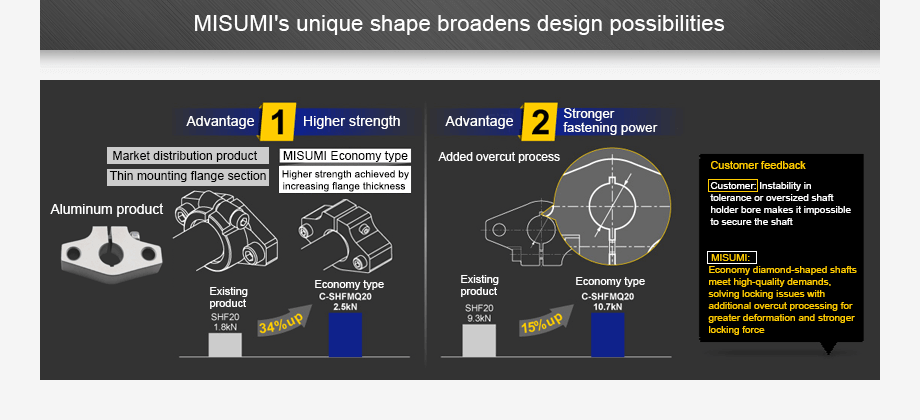

MISUMI's unique shape broadens design possibilities
Aluminum products
Customer: Instability in tolerance or oversized shaft holder bore makes it impossible to secure the shaft.
MISUMI: Economy diamond-shaped shafts meet high-quality demands, solving locking issues with additional overcut processing for greater deformation and stronger locking force.
-
Advantage 1 Higher strength
Market distribution product, Thin mounting flange section
MISUMI Economy type
Higher strength achieved by increasing flange thickness
Existing Product SHF20 1.8KN 34%up
Economy type C-SHFMQ20 2.5KN -
Advantage 2 Higher strength
Added overcut process
Existing Products SHF20 9.3KN 34%up Economy Type C-SHFMQ20 10.7KN
Customer: Instability in tolerance or oversized shaft holder bore makes it impossible to secure the shaft.
MISUMI: Economy diamond-shaped shafts meet high-quality demands, solving locking issues with additional overcut processing for greater deformation and stronger locking force.

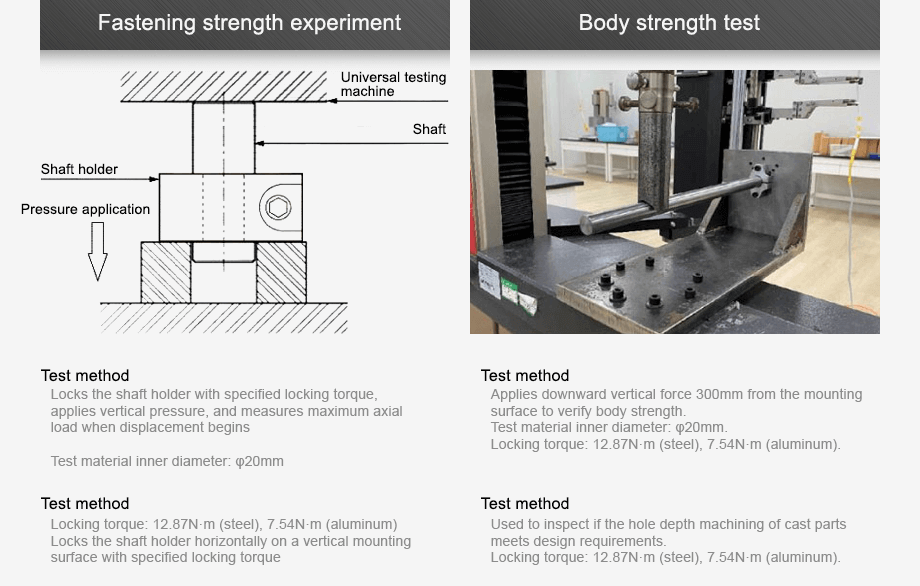

Fastening strength experiment
Test Methods
Locks the shaft holder with specified locking torque, applies vertical pressure, and measures maximum axial load when displacement begins
Test material inner diameter: φ20mm
Test Methods
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum)
Locks the shaft holder horizontally on a vertical mounting surface with specified locking torque
Test Methods
Locks the shaft holder with specified locking torque, applies vertical pressure, and measures maximum axial load when displacement begins
Test material inner diameter: φ20mm
Test Methods
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum)
Locks the shaft holder horizontally on a vertical mounting surface with specified locking torque
Body strength test
Test Methods
Applies downward vertical force 300mm from the mounting surface to verify body strength.
Test material inner diameter: φ20mm.
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum).
Test Methods
Used to inspect if the hole depth machining of cast parts meets design requirements.
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum).
Test Methods
Applies downward vertical force 300mm from the mounting surface to verify body strength.
Test material inner diameter: φ20mm.
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum).
Test Methods
Used to inspect if the hole depth machining of cast parts meets design requirements.
Locking torque: 12.87N·m (steel), 7.54N·m (aluminum).
Design Case
Take a closer look

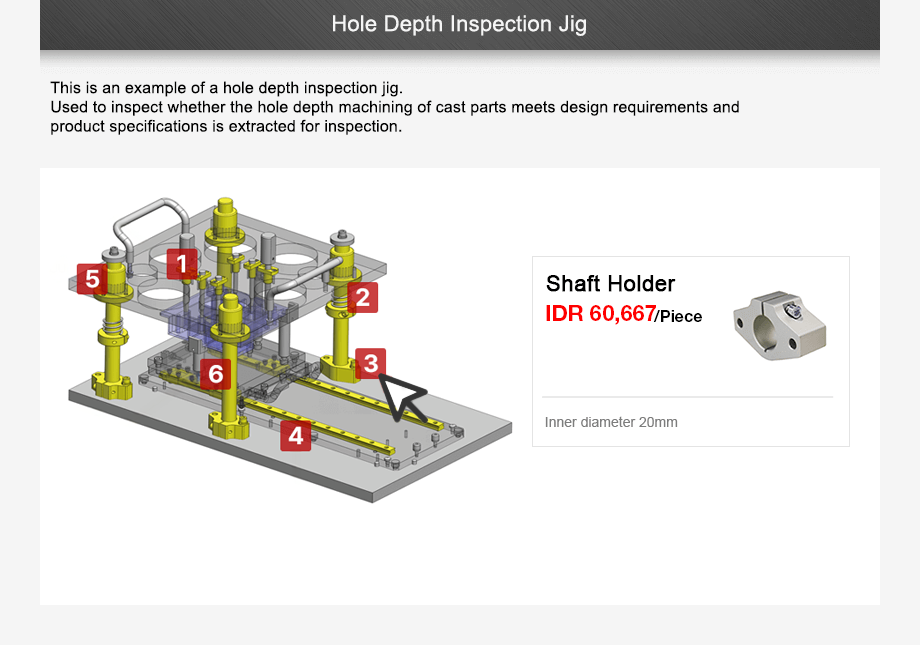

hole depth inspection jig
This is an example of a hole depth inspection jig.
Used to inspect whether the hole depth machining of cast parts meets design requirements and product specifications is extracted for inspection.
This is an example of a hole depth inspection jig.
Used to inspect whether the hole depth machining of cast parts meets design requirements and product specifications is extracted for inspection.
Shaft Holders
₹ 333.18 /Unit, Tax excluded
Inner diameter 20mm
₹ 333.18 /Unit, Tax excluded
Inner diameter 20mm
