Economy Linear GuidesSignificantly (layout toll specification) to allow low friction
G-series dimensional correspondence
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- Website MISUMI akan di-upgrade untuk pengalaman pemesanan yang lebih baik. Mohon diperhatikan, kantor MISUMI akan tutup pada 26 September & website MISUMI menjalani maintenance mulai 25 September (17.30) – 28 September (08.30).
MISUMI website will be upgraded for a better ordering experience. Please note that the MISUMI office will be closed on 26 September, and the MISUMI website will undergo maintenance from 25 September (17:30) until 28 September (08:30).
Economy Linear GuidesSignificantly (layout toll specification) to allow low friction
G-series dimensional correspondence
New product launch
Expanded standard specifications
- Layout toll specification Standard chartered support
Customizable specification possible G-series specifications
Dimensional correspondence
High interchangeability possible
- Layout toll specification Standard chartered support
Customizable specification possible G-series specifications
Dimensional correspondence
High interchangeability possible

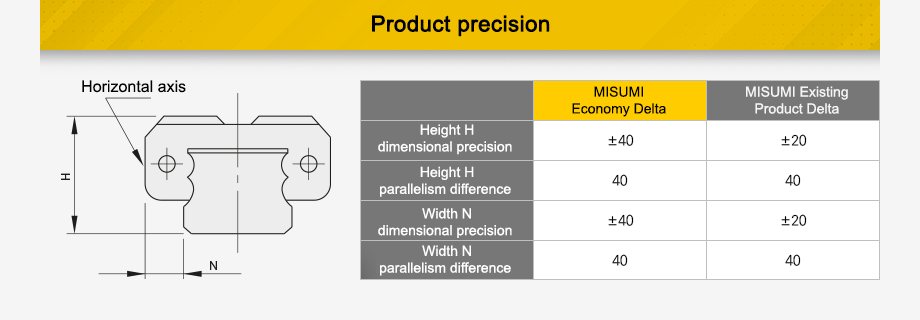

Product precision
| MISUMI Economy Delta | MISUMI Existing Product Delta | |
| Height H parallelism difference | ±40 | ±20 |
| Width H parallelism difference | 40 | 40 |
| Width N parallelism difference | ±40 | ±20 |
| Width N parallelism difference | 40 | 40 |

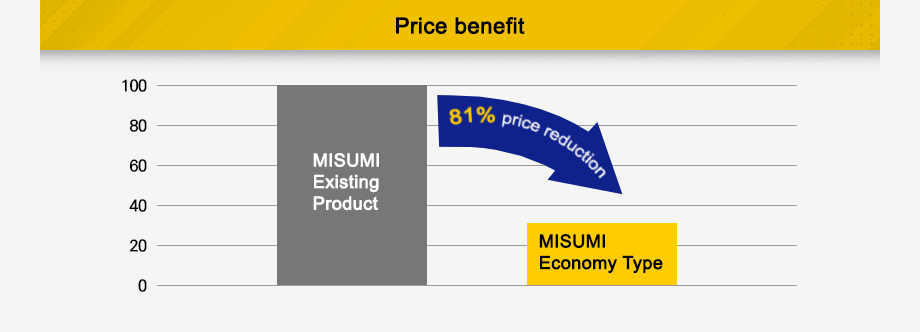

Price benefits
Up to 81% reduced as compared to Misumi existing products

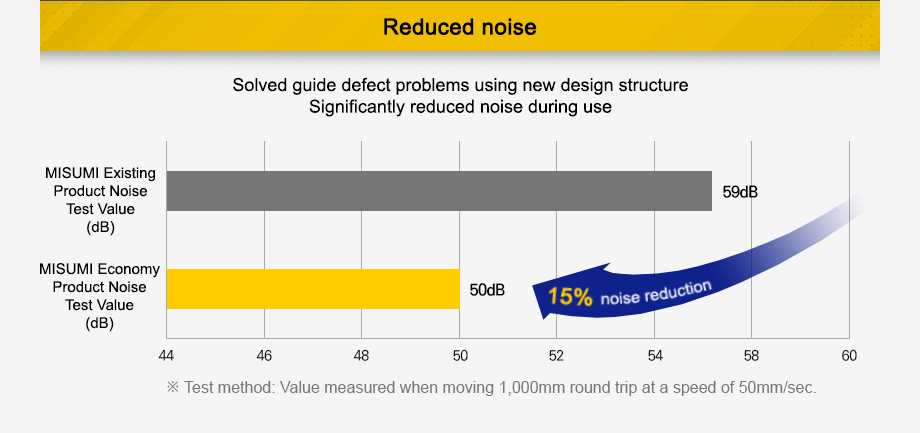

Reduced noise
Solved guide defect problems using new design structure Significantly reduced noise during use
MISUMI Existing Product Noise Test Value 59(dB)
MISUMI Economy Product Noise Test Value 50(dB), 15% noise reduction
※ Test method: Value measured when moving 1,000mm round trip at a speed of 50mm/sec.
MISUMI Existing Product Noise Test Value 59(dB)
MISUMI Economy Product Noise Test Value 50(dB), 15% noise reduction
※ Test method: Value measured when moving 1,000mm round trip at a speed of 50mm/sec.
Design Case
Take a closer look

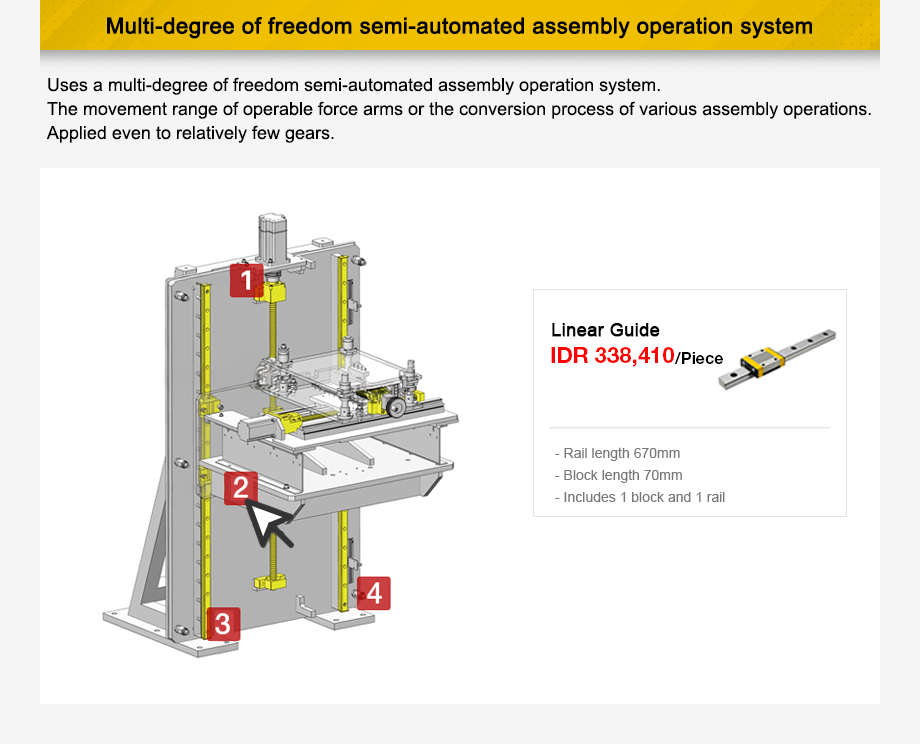

Multi-degree of freedom semi-automated assembly operation system
Uses a multi-degree of freedom semi-automated assembly operation system.
The movement range of operable force arms or the conversion process of various assembly operations.
Applied even to relatively few gears.
Uses a multi-degree of freedom semi-automated assembly operation system.
The movement range of operable force arms or the conversion process of various assembly operations.
Applied even to relatively few gears.
Linear Guide
Starting price ₹1024.00 /Unit
- Rail length 670mm
- Block length 70mm
- Includes 1 block and 1 rail
Starting price ₹1024.00 /Unit
- Rail length 670mm
- Block length 70mm
- Includes 1 block and 1 rail
