Low price

Misumi existing product

Outer diameter D: 6mm
Length L: 16mm
1,520 won

VS

Misumi economy type

Outer diameter D: 6mm
Length L: 16mm
1,370 won (can be ordered from 3 pieces)

Misumi existing product > 10% price reduction Misumi economy type
Apply multiple discounts for bulk orders

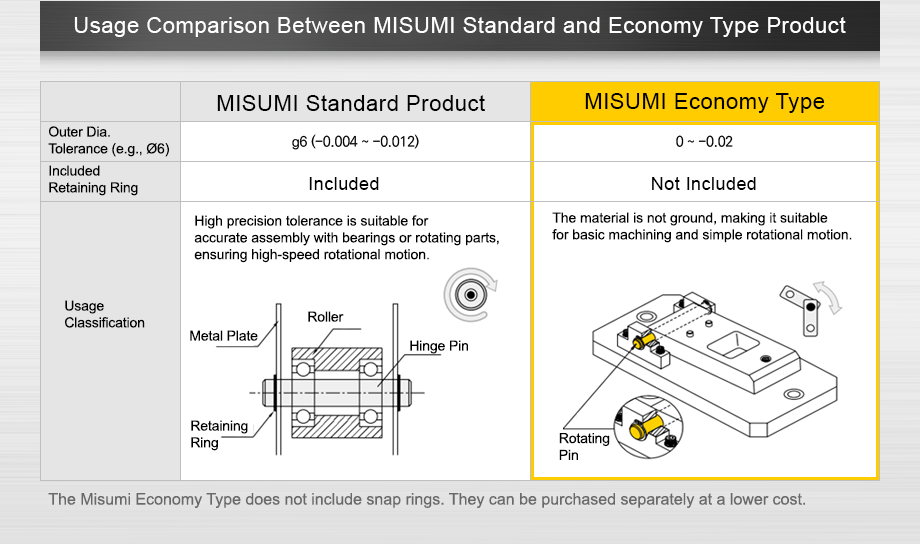

Difference between economy type and Misumi existing product

	Misumi existing product	Misumi economy type
Outer diameter tolerance (e.g. Ø6)	g6 (-0.004 ~ -0.012)	0 ~ -0.02
Enclosed stop ring	With	Without	Without
Distinction between use	High tolerance precision allows for high-speed rotational motion by precisely combining with bearings or rotating parts Suitable for.	The material is not heat treated, so it is suitable for rotating the yellow puffer together with general processing products.

※ The Misumi economical product does not have a snap ring. The snap ring is an existing product on the market, so please purchase it separately as it is inexpensive.

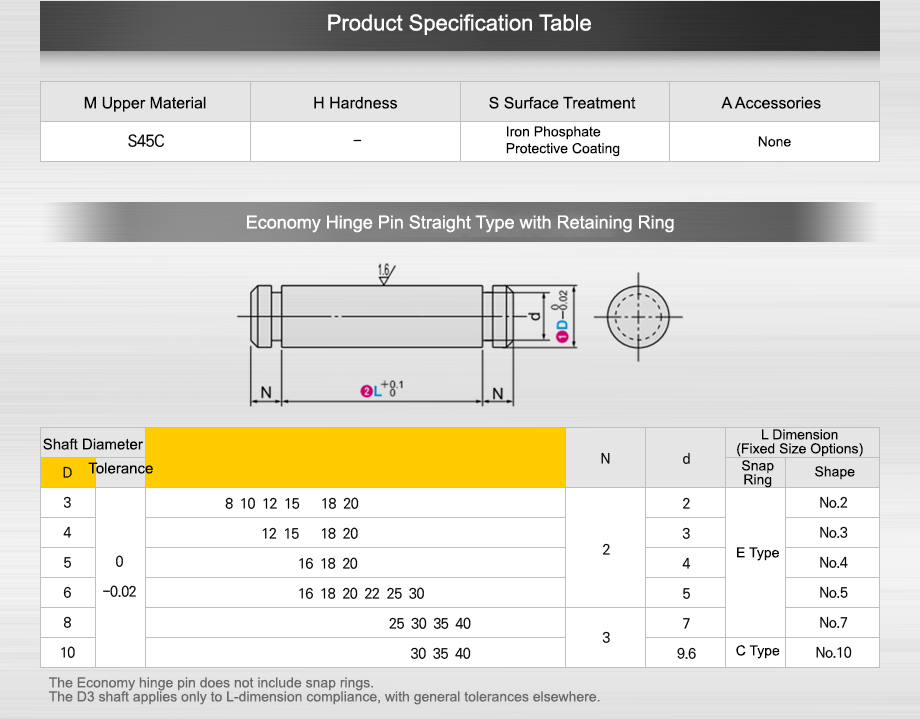

Product Specifications

M equivalent material	H hardness	S surface treatment	A accessories
S45C	-	Tetrafluoroethylene protective film	None

Economy hinge pin straight type fixed ring type

Shaft diameter		L dimension (fixed dimension selection)	N	d	Snap ring
D	Tolerance				Shape	JIS nominal standard
3	0 -0.02	8 10 12 15 18 20	2	2	E type	No.2
4		12 15 18 20		3		No.3
5		16 18 20		4		No.4
6		16 18 20 22 25 30		5		No.5
8		25 30 35 40	3	6		No.7
10		30 35 40		9.6	C type	No.10

※ Snap ring is not included with economy hinge pin. ※ D tolerance applies only to L dimension range. Others are general tolerance.

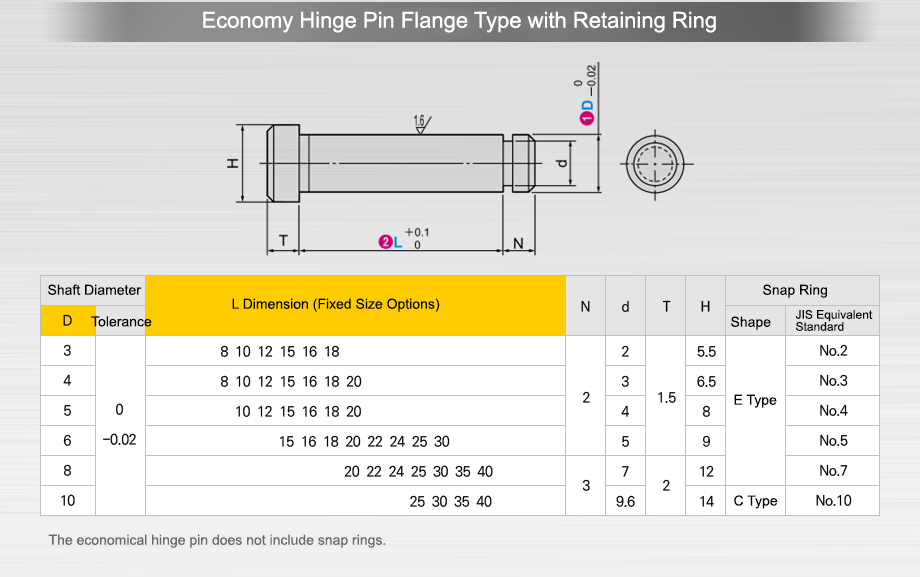

Economy hinge pin flange type fixed ring type

M equivalent material	H hardness	S surface treatment	A accessories
S45C	-	Tri-iron tetraoxide protection film	None

Economy hinge pin straight type fixed ring type

Shaft diameter		L dimension (select fixed dimension)	N	d	T	H	Snap ring
D	Tolerance						Shape	JIS Nominal Standard
3	0 -0.02	8 10 12 15 18 20	2	2	1.5	5.5	E type	No.2
4		12 15 18 20		3		6.5		No.3
5		16 18 20		4		8		No.4
6		16 18 20 22 25 30		5		9		No.5
8		25 30 35 40	3	6	2	12		No.7
10		30 35 40		9.6		14	C type	No.10

※ The economy hinge pin does not include a snap ring. ※ D tolerance applies only to the L dimension range. The others are general tolerances.

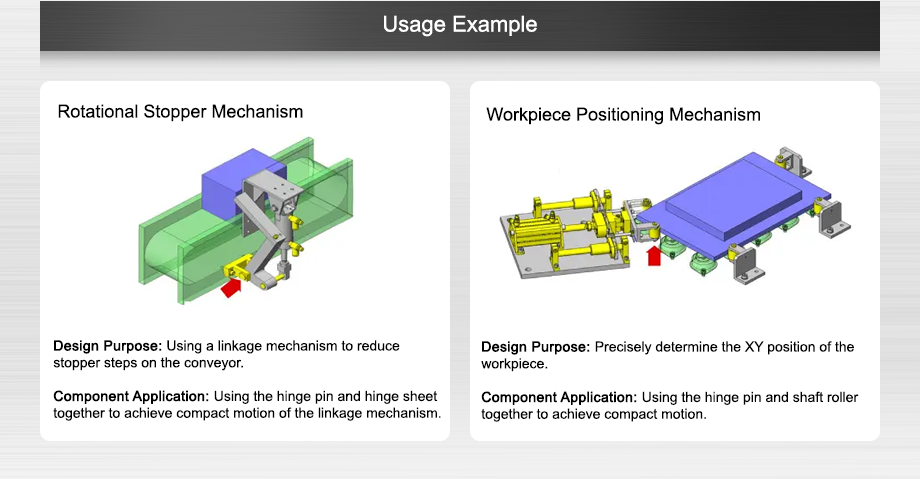

Use Cases

Rotary Stopper Mechanism

Design Purpose: Reduce the stopper dimensions of the conveyor by using the link mechanism.
Part Application Description: Use the hinge pin and hinge sheet together to implement the swing motion of the link mechanism.

Workpiece Positioning Mechanism

Design Purpose: Precisely determine the position of the workpiece in the XY direction.
Part Application Description: Use the hinge pin and resin roller together to implement the swing motion.
