Angle Plates
Smart choice for cost reduction
Economy angle plate
Lightweight, high strength, low price, new specifications
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- Website MISUMI akan di-upgrade untuk pengalaman pemesanan yang lebih baik. Mohon diperhatikan, kantor MISUMI akan tutup pada 26 September & website MISUMI menjalani maintenance mulai 25 September (17.30) – 28 September (08.30).
MISUMI website will be upgraded for a better ordering experience. Please note that the MISUMI office will be closed on 26 September, and the MISUMI website will undergo maintenance from 25 September (17:30) until 28 September (08:30).
Product Features
lightweight

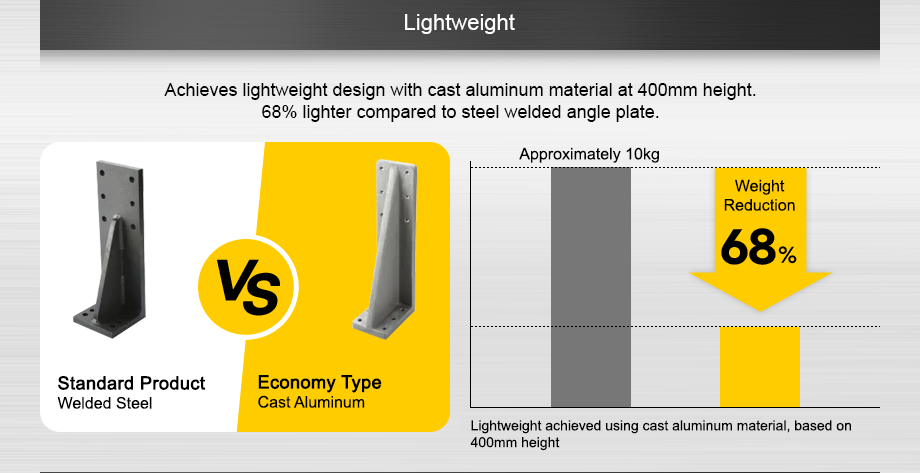

Lightweight implementation with cast aluminum material 68% lighter than iron welded angle plate for 400mm heightExisting product - welded iron VS economical - cast aluminum
Lightweight implementation with cast aluminum material, based on 400mm height
High strength

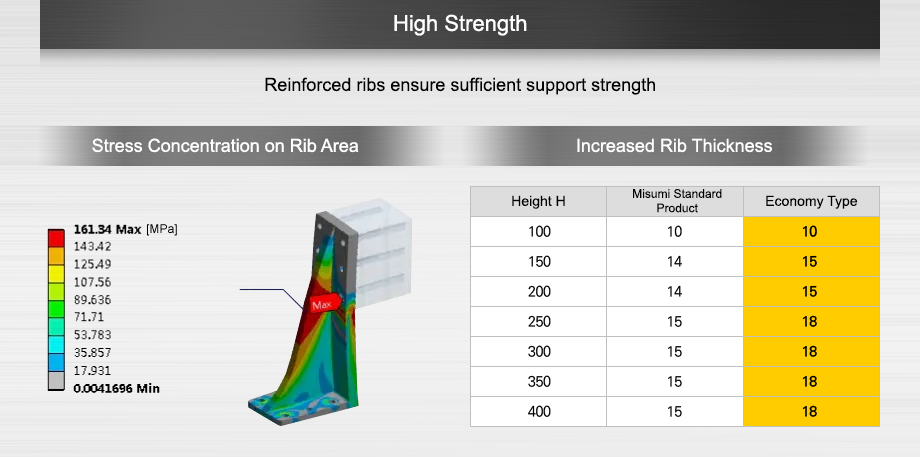

Ensuring sufficient support strength by reinforcing ribs Stress concentration in rib areaIncreased rib thickness
| Height H | Misumi standard product | Economy type |
|---|---|---|
| 100 | 10 | 10 |
| 150 | 14 | 15 |
| 200 | 14 | 15 |
| 250 | 15 | 18 |
| 300 | 15 | 18 |
| 350 | 15 | 18 |
| 400 | 15 | 18 |
Compression deformation test

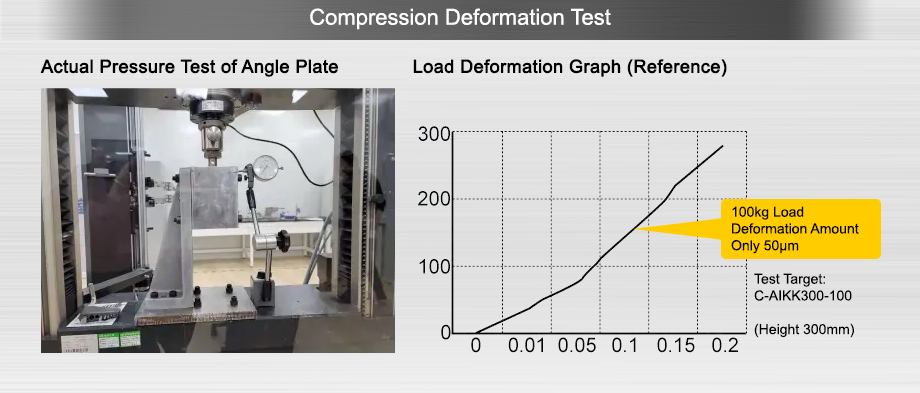

Angle plate internal pressure actual testLoad deformation graph (reference) 100kg load deformation amount is only 50㎛
